850-10-048-10-001101

Active

PRECI-DIP SA

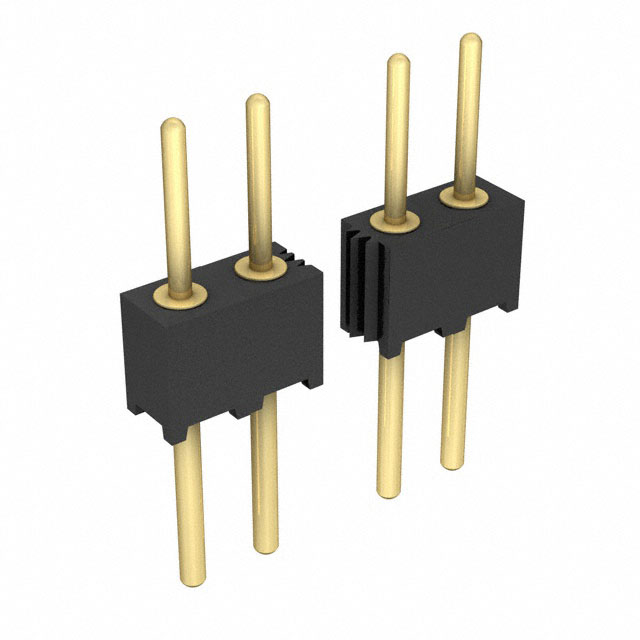

CONN HEADER VERT 48POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

850-10-048-10-001101

Active

PRECI-DIP SA

CONN HEADER VERT 48POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	850-10-048-10-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.087 "
Insulation Height	2.2 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length [x]	8.1 mm
Overall Contact Length [x]	0.319 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

850-10 Series

...

Part	Contact Finish - Post	Number of Positions	Mounting Type	Insulation Color	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shrouding	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Contact Finish - Mating	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Voltage Rating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Features
PRECI-DIP SA 850-10-028-40-001101	Gold	28	Surface Mount Right Angle	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in
PRECI-DIP SA 850-10-015-40-251101	Gold	15	Surface Mount Right Angle	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in
PRECI-DIP SA 850-10-021-10-001101	Gold	21	Through Hole	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in	8.1 mm	0.319 in	0.114 in	2.9 mm
PRECI-DIP SA 850-10-030-30-135101	Gold	30	Surface Mount	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in					Board Guide
PRECI-DIP SA 850-10-041-30-001101	Gold	41	Surface Mount	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in
PRECI-DIP SA 850-10-033-20-001101	Gold	33	Through Hole Right Angle	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in			0.118 in	3 mm
PRECI-DIP SA 850-10-044-20-001101	Gold	44	Through Hole Right Angle	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in			0.118 in	3 mm
PRECI-DIP SA 850-10-048-10-001101	Gold	48	Through Hole	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in	8.1 mm	0.319 in	0.114 in	2.9 mm
PRECI-DIP SA 850-10-049-30-001101	Gold	49	Surface Mount	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in
PRECI-DIP SA 850-10-002-20-001101	Gold	2	Through Hole Right Angle	Black	Header	0.087 "	2.2 mm	-55 °C	125 °C	Brass	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	0.05 in	1.27 mm	Circular	10 çin	0.25 çm	Push-Pull	Gold	1	All	10 çin	0.25 çm	Solder	150 VDC	UL94 V-0	3 mm	0.118 in			0.118 in	3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 9.03

Description

General part information

850-10 Series

Connector Header Through Hole 48 position 0.050" (1.27mm)
