RT00104SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Deep-Dive with AI

Documentsecomate RM, RSSM, RM Flyer ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT00104SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-4
Shielding	Shielded
Type	For Female Sockets

RT00104 Series

Part	Material Flammability Rating	Fastening Type	Contact Type	Housing Color	Shell Finish	Connector Type	Shell Material	Type	Insert Material	Ingress Protection	Contact Shape	Contact Size	Note	Number of Positions	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Orientation	Shell Size - Insert	Primary Material	Termination	Color	Voltage Rating	Applications	Contact Material	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Mating	Features
Amphenol Sine Systems Corp RT00104SNH	UL94 V-0	Bayonet Lock	Crimp	Silver	Nickel	Receptacle Housing	Zinc Alloy	For Female Sockets	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	16	Contacts Not Included	4	Flange	-40 °C	105 ░C	Shielded	N	10-4
Amphenol Sine Systems Corp RT00104PKNH03-K	UL94 V-0	Bayonet Lock			Nickel	Male Pins Receptacle	Zinc Die Cast		Polyamide (PA66) Nylon 6/6	IP67 IP69K				4	Flange	-40 °C	105 ░C	Shielded	N	10-4	Metal	Crimp	Silver	250 VAC	Aerospace Automation Industrial Telecom Transportation	Brass	Flash	13 A	Gold
Amphenol Sine Systems Corp RT00104PNH	UL94 V-0	Bayonet Lock	Crimp	Silver	Nickel	Receptacle Housing	Zinc Alloy	For Male Pins	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	16	Contacts Not Included	4	Flange	-40 °C	105 ░C	Shielded	N	10-4
Amphenol Sine Systems Corp RT00104SKNH03-K	UL94 V-0	Bayonet Lock			Nickel	Receptacle Female Sockets	Zinc Die Cast		Polyamide (PA66) Nylon 6/6	IP67 IP69K				4	Flange	-40 °C	105 ░C	Shielded	N	10-4	Metal	Crimp	Silver	250 VAC	Aerospace Automation Industrial Telecom Transportation	Brass	Flash	13 A	Gold
Amphenol Sine Systems Corp RT00104SNHEC03	UL94 V-0	Bayonet Lock	Crimp	Silver	Nickel	Receptacle Housing	Zinc Alloy	For Female Sockets	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	16	Contacts Not Included	4	Flange	-40 °C	125 °C	Shielded	N	10-4	Metal									Cap (Cover)
Amphenol Sine Systems Corp RT00104SNH-K		Bayonet Lock			Nickel	Receptacle Female Sockets	Zinc Die Cast			IP67 - Dust Tight Waterproof				4	Flange	-40 °C	105 ░C		N	10-4	Metal	Crimp	Silver	250 VAC			Flash	13 A	Gold
Amphenol Sine Systems Corp RT00104SNHEC	UL94 V-0	Bayonet Lock	Crimp	Silver	Nickel	Receptacle Housing	Zinc Alloy	For Female Sockets	Thermoplastic	IP67 - Dust Tight Waterproof	Circular	16	Contacts Not Included	4	Flange	-40 °C	105 ░C	Shielded	N	10-4										Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.91
		10	$ 6.22
		25	$ 5.86
		50	$ 5.71
		200	$ 5.56
		400	$ 5.29

Description

General part information

RT00104 Series

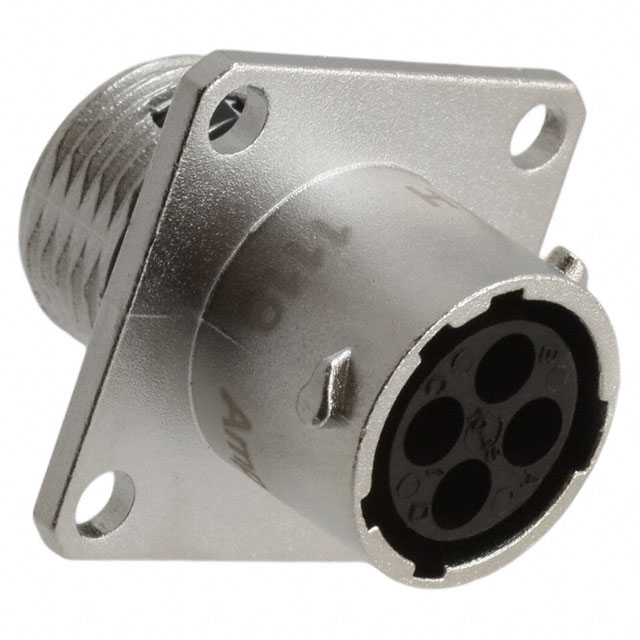

4 Position Circular Connector Receptacle Housing Panel Mount
