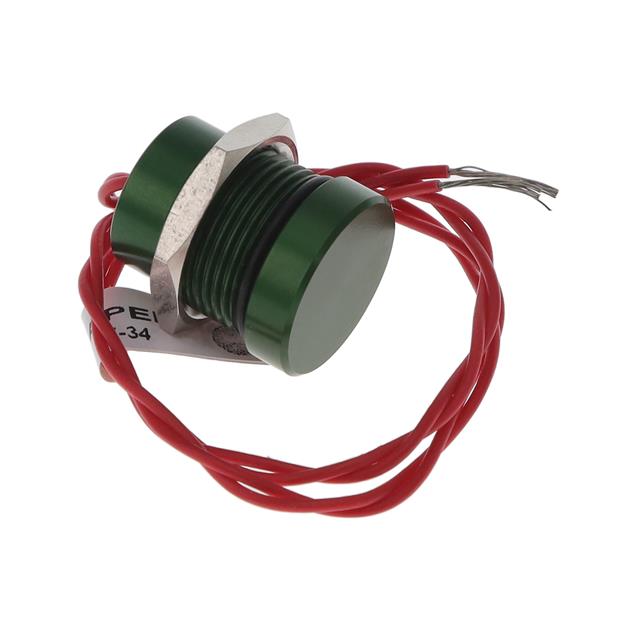

PBAR1AF3000

Active

APEM

SWITCH PUSH SPST-NO 0.2A 24V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NO 0.2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	PBAR1AF3000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Green
Current Rating (Amps)	200 mA
Electrical Life	50000000 Cycles
Features	Low Temperature Lubricant
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Piezo
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

Part	Type	Actuator Marking	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Ingress Protection	Features	Electrical Life	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Mounting Type	Circuit	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)
APEM PBAR1AF3000	Piezo	No Marking	Off-Mom	24 V	24 V	Wire Leads	200 mA	IP68 - Dust Tight Waterproof	Low Temperature Lubricant	50000000 Cycles	16.2 mm	-40 °C	75 ░C	Green	Panel Mount Front	SPST-NO	Button Flush Round
APEM PBAR1AF0000A0G	Piezo	No Marking	Off-Mom	24 V	24 V	Wire Leads	200 mA	IP68 - Dust Tight Waterproof	Low Temperature Lubricant	50000000 Cycles	16.2 mm	-40 °C	75 ░C	Natural	Panel Mount Front	SPST-NO	Button Flush Round	Green LED	5 VDC
APEM PBAR1CFB000K0G
APEM PBAR1AF6000A0S	Piezo	No Marking	Off-Mom	24 V	24 V	Wire Leads	200 mA	IP68 - Dust Tight Waterproof	Low Temperature Lubricant	50000000 Cycles	16.2 mm	-40 °C	75 ░C	Red	Panel Mount Front	SPST-NO	Button Flush Round	LED Red	5 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Piezo Panel Mount, Front
