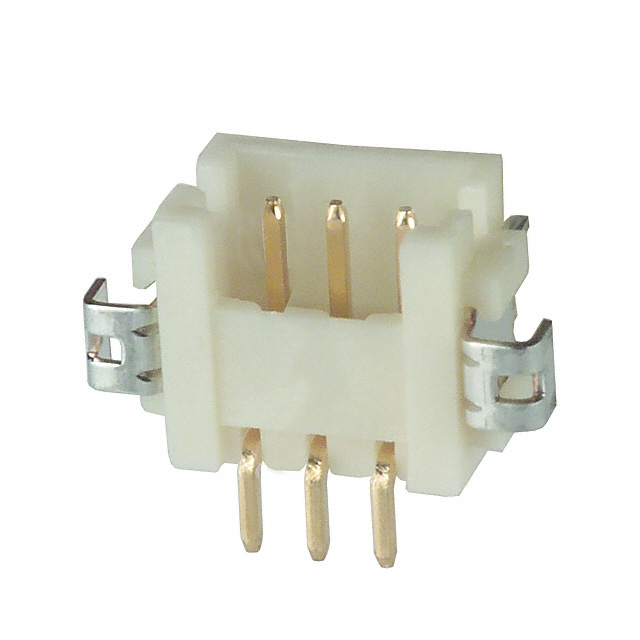

DF13A-3P-1.25H(50)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 3POS 1.25MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF13 Series Datasheet Datasheet

DF13A-3P-1.25H(50)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 3POS 1.25MM

Deep-Dive with AI

DocumentsDF13 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF13A-3P-1.25H(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	3.6 mm
Insulation Height	0.142 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF13A Series

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Number of Rows	Features	Fastening Type	Style	Shrouding	Number of Positions	Insulation Material	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Contact Finish - Mating	Mounting Type	Contact Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Mated Stacking Heights
Hirose Electric USA, Inc. DF13A-6P-1.25H(51)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	6	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
Hirose Electric USA, Inc. DF13A-3P-1.25H(50)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall		Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
Hirose Electric USA, Inc. DF13A-14P-1.25H(21)	UL94 V-0			Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	14	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header		Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C	Tin
Hirose Electric USA, Inc. DF13A-3P-1.25H(76)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall		Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C	Gold	8 µin	0.203 µm
Hirose Electric USA, Inc. DF13A-40DP-1.25V(82)	UL94 V-0	0.76 Ám	30 Áin	Solder	All	4.8 mm	0.189 in	Brass	2	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	40	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount	Male Pin	Square	-35 °C	85 °C	Tin-Copper	39.4 çin	1 çm	0.049 in	1.25 mm	2.4 mm	0.094 in	5.8 mm
Hirose Electric USA, Inc. DF13A-8P-1.25H(90)
Hirose Electric USA, Inc. DF13A-15P-1.25H(50)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	15	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
Hirose Electric USA, Inc. DF13A-7P-1.25H(50)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	7	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
Hirose Electric USA, Inc. DF13A-12P-1.25H(51)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	12	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
Hirose Electric USA, Inc. DF13A-11P-1.25H(51)	UL94 V-0	0.203 Ám	8 Áin	Solder	All	3.6 mm	0.142 in	Brass	1	Solder Retention	Detent Lock	Board to Cable/Wire	Shrouded - 4 Wall	11	Nylon Polyamide (PA)	150 VDC	1.25 mm	0.049 in	Beige	Header	Gold	Surface Mount Right Angle	Male Pin	Square	-35 °C	85 °C
