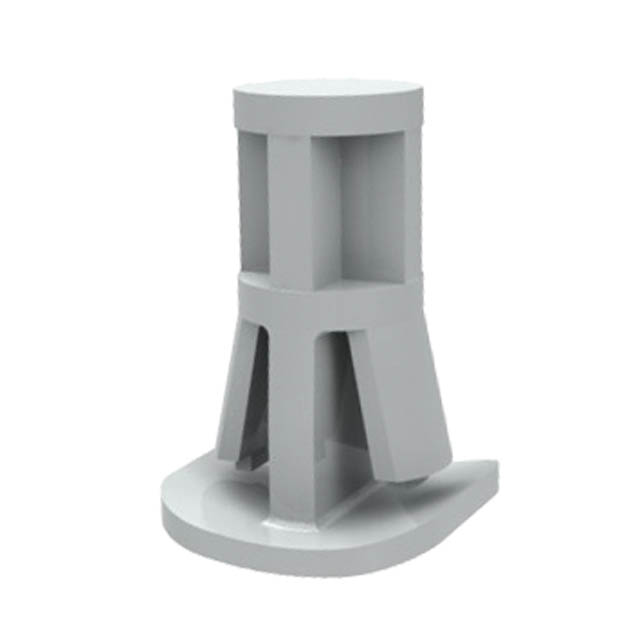

RLCBSB-12-01
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LOCK 12MM
Deep-Dive with AI
Search across all available documentation for this part.
RLCBSB-12-01
ActiveEssentra Access Solutions
BRD SPT REST MNT SNAP LOCK 12MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLCBSB-12-01 |
|---|---|
| Between Board Height | 0.472 in |
| Between Board Height | 12 mm |
| Features | Locking, Reverse Mounting |
| Holding Type | Resting Mount |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.217 in |
| Mounting Hole Diameter [diameter] | 5.5 mm |
| Mounting Panel Thickness [Max] | 0.039 in |
| Mounting Panel Thickness [Max] | 1 mm |
| Mounting Panel Thickness [Min] | 0.5 mm |
| Mounting Panel Thickness [Min] | 0.02 in |
| Mounting Type | Snap Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
Description
General part information
RLCBSB Series
Board Support Resting Mount / Snap Lock Nylon 0.472" (12.00mm)
Documents
Technical documentation and resources
No documents available
