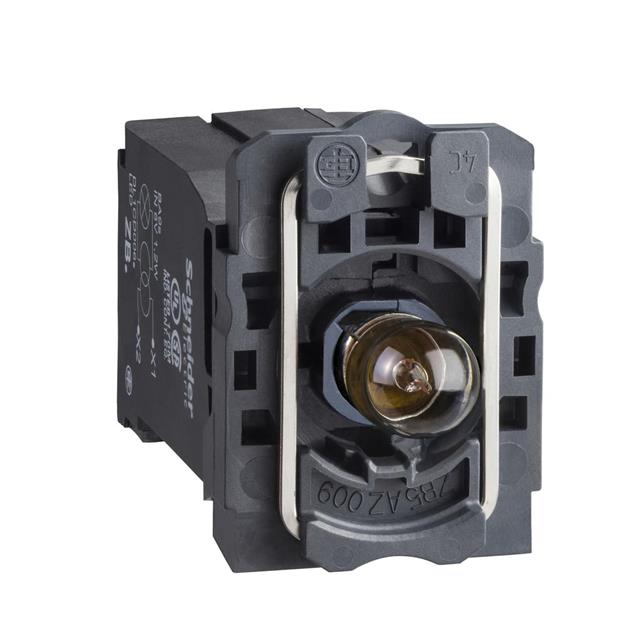

ZB5AV5

Active

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE BODY/LIGHT BLOCK ASSEMB

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE BODY/LIGHT BLOCK ASSEMB

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Lens Style	Type	Termination Style	Voltage [Max]	Voltage [Min]	Voltage	Material	Color	Lens Size [diameter]	Number of LEDs	Mounting Type	Current	Lamp Color
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV3	AC	Round with Domed Top	Incandescent	Screw Terminal	120 V	110 V
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV5	AC	Round with Domed Top	Incandescent	Screw Terminal			400 V
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV043			Lens With Holder					Plastic	Red	29 mm	1	Twist Lock
SQUARE D BY SCHNEIDER ELECTRIC ZB5AVM1	AC		LED	Screw Terminal	240 V	230 V							14 mA	White
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV8	AC	Round with Domed Top	Incandescent	Screw Terminal
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV05			Lens With Holder					Plastic	Yellow	29 mm	1	Twist Lock
SQUARE D BY SCHNEIDER ELECTRIC ZB5AVM4	AC		LED	Screw Terminal	240 V	230 V							14 mA	Red
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV07			Lens With Holder					Plastic	White	29 mm	1	Twist Lock
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV033S			Lens With Holder					Plastic	Green	29 mm	1	Twist Lock
SQUARE D BY SCHNEIDER ELECTRIC ZB5AV18G3	AC		LED	Screw Terminal	120 V	110 V							14 mA	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.00

General part information

Incandescent Panel Indicator 400V Screw Terminal
