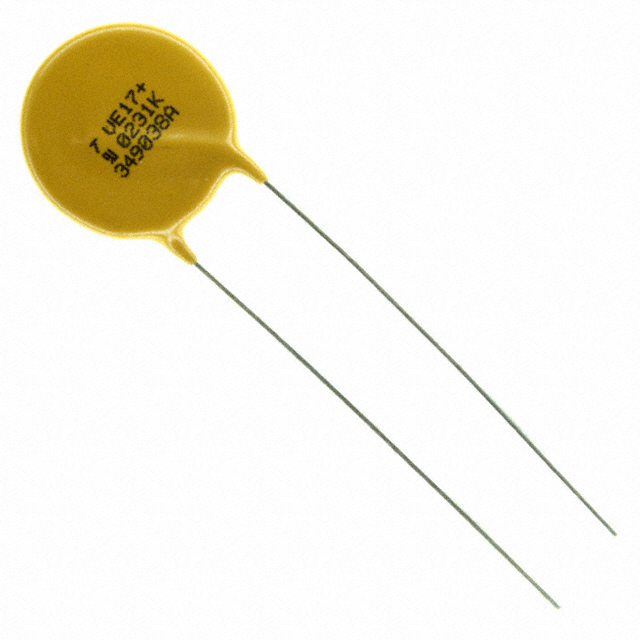

VE17P00231K

Obsolete

Kyocera AVX

VARISTOR 360V 6KA DISC 17MM

Search across all available documentation for this part.

Obsolete

Kyocera AVX

VARISTOR 360V 6KA DISC 17MM

Technical Specifications

Parameters and characteristics for this part

Part	Maximum AC Volts [Max]	Maximum DC Volts [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Package / Case [diameter]	Package / Case	Capacitance @ Frequency	Number of Circuits	Current - Surge	Varistor Voltage (Max) [Max]	Energy
Kyocera AVX VE17P00231K	230 V	300 V	Through Hole	-40 °C	125 °C	324 V	360 V	17 mm	Disc	550 pF	1	6 kA	396 V
Kyocera AVX VE17M00141K	140 V	180 V	Through Hole	-40 °C	125 °C	198 V	220 V	17 mm	Disc	930 pF	1	4.5 kA	242 V	26.5 J
Kyocera AVX VE17M00151KED	150 V	200 V	Through Hole	-40 °C	125 °C	216 V	240 V	17 mm	Disc	850 pF	1	4.5 kA	264 V	30 J
Kyocera AVX VE17M00151K	150 V	200 V	Through Hole	-40 °C	125 °C	216 V	240 V	17 mm	Disc	850 pF	1	4.5 kA	264 V	30 J
Kyocera AVX VE17M00461K--	460 V	615 V	Through Hole	-40 °C	125 °C	675 V	750 V	17 mm	Disc	275 pF	1	4.5 kA	825 V	47 J
Kyocera AVX VE17P00211K			Through Hole	-40 °C	125 °C	297 V	330 V	17 mm	Disc	600 pF	1	6 kA	363 V	115 J
Kyocera AVX VE17M00200K--	20 V	26 V	Through Hole	-40 °C	125 °C	29.5 V	33 V	17 mm	Disc	5700 pF	1	1 kA		4 J
Kyocera AVX VE17M00251K	250 V	320 V	Through Hole	-40 °C	125 °C	351 V	390 V	17 mm	Disc	500 pF	1	4.5 kA	429 V	39 J
Kyocera AVX VE17M00321K	320 V	420 V	Through Hole	-40 °C	125 °C	459 V	510 V	17 mm	Disc	380 pF	1	4.5 kA	561 V	42 J
Kyocera AVX VE17M01150K	115 V	150 V	Through Hole	-40 °C	125 °C	162 V	180 V	17 mm	Disc	1100 pF	1	4.5 kA	198 V	22 J

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

360 V 6 kA Varistor 1 Circuit Through Hole Disc 17mm
