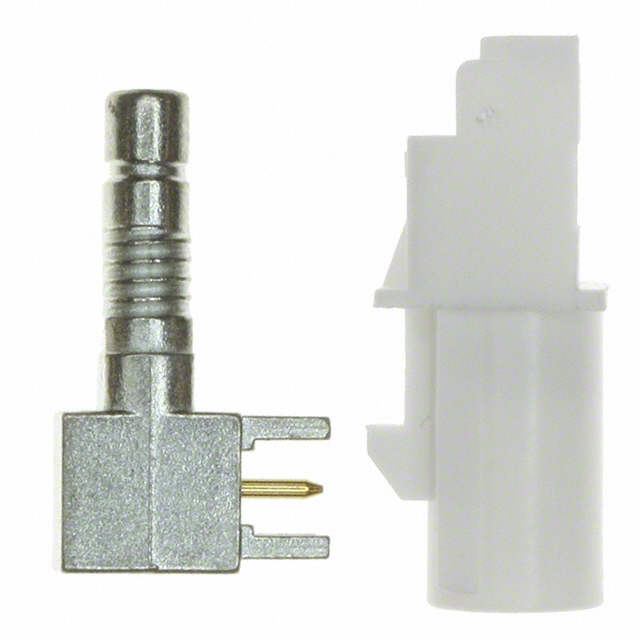

FA1-NBRP-PCB-8

Active

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NBRP-PCB-8

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code B
Frequency - Max [Max]	6000 MHz
Housing Color	Cream
Impedance	50 Ohms
Includes	1 Connector, 1 Housing
Insertion Loss	0.3 dB
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Body Finish	Mounting Type	Includes	Housing Color	Dielectric Material	Connector Type	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Fastening Type	Insertion Loss	Number of Ports	Frequency - Max [Max]	Features	Contact Termination	Center Contact Plating	Center Contact Material	Impedance	Body Material
Amphenol RF FA1-NBRP-PCB-8	Nickel	Through Hole Right Angle	1 Connector 1 Housing	Cream	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Solder	125 °C	-65 ░C	Fakra SMB	Locking Ramp	0.3 dB	1	6000 MHz	Code B	Solder	Gold	Brass	50 Ohms	Zinc Die Cast
Amphenol RF FA1-NBRP-PCB-9	Nickel	Through Hole Right Angle	1 Connector 1 Housing	Cream	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Solder	125 °C	-65 ░C	Fakra SMB	Locking Ramp	0.3 dB	1	6000 MHz	Code B	Solder	Gold	Brass	50 Ohms	Zinc Die Cast
