008383010000010

Active

Kyocera AVX

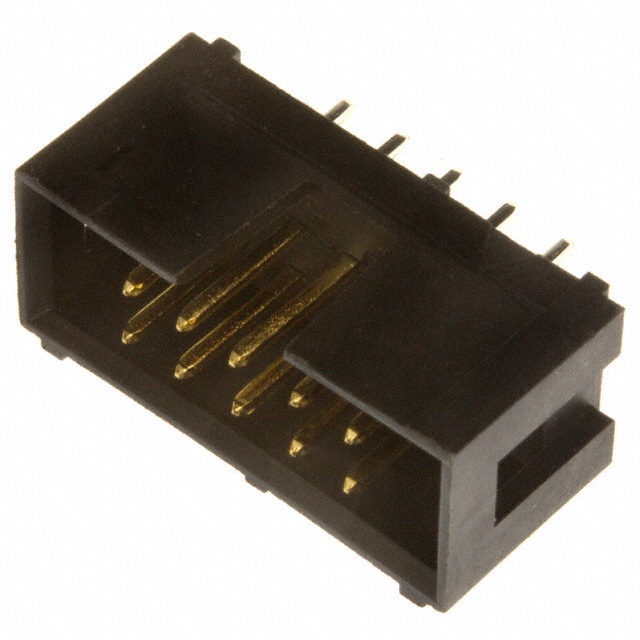

CONN HEADER VERT 10POS 2.54MM

Search across all available documentation for this part.

Active

Kyocera AVX

CONN HEADER VERT 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	008383010000010

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.242 in
Contact Length - Mating	6.15 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Beige
Insulation Height	9.55 mm
Insulation Height	0.376 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	350 V

Part	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Connector Type	Number of Rows	Features	Contact Shape	Material Flammability Rating	Shrouding	Contact Material	Fastening Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Style	Mounting Type	Number of Positions	Voltage Rating	Termination
Kyocera AVX 008383010000010	Nylon Polyamide (PA)	Male Pin	0.1 in	2.54 mm	30 Áin	0.76 Ám	All	0.11 in	2.79 mm	Header	2	Keying Slot	Square	UL94 V-0	Shrouded - 4 Wall	Brass	Push-Pull	Gold	9.55 mm	0.376 in	Beige	2.54 mm	0.1 in	0.242 in	6.15 mm	Nickel	Board to Cable/Wire	Through Hole	10	350 V	Solder
