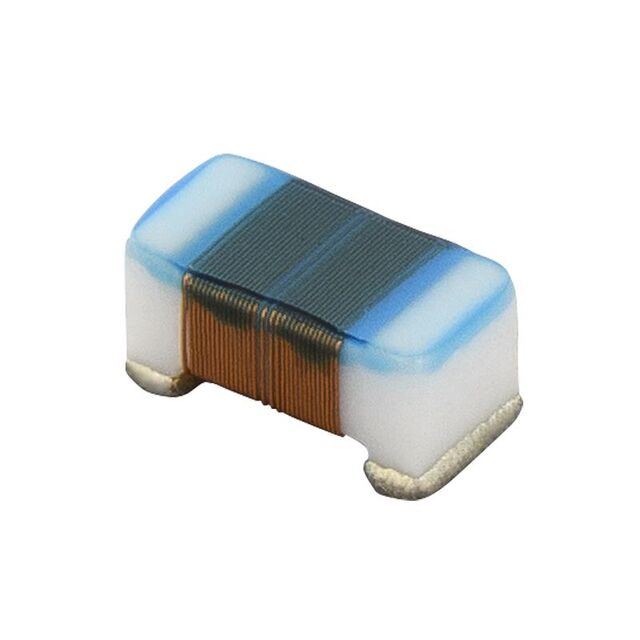

LQW18AS23NJ00D

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LQW18AS23NJ00D

Active

Murata Power Solutions Inc.

FIXED IND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQW18AS23NJ00D

null

LQW18AS Series

...

Part	DC Resistance (DCR)	Supplier Device Package	Supplier Device Package	Current Rating (Amps)	Material - Core	Shielding	Package / Case	Ratings	Q @ Freq	Tolerance	Type	Inductance Frequency - Test	Frequency - Self Resonant	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. LQW18AS33NJ0ZD	220 mOhm	1608 Metric	0603	600 mA	Non-Magnetic	Unshielded	0603 (1608 Metric)	AEC-Q200	40 250 MHz	5 %	Wirewound	250 MHz	2.3 GHz	Surface Mount	-55 °C	125 °C	0.039 "	1 mm	33 nH	0.8 mm	0.063 in	1.6 mm	0.031 in
Murata Power Solutions Inc. LQW18AS68NG0ZD		1608 Metric	0603	600 mA	Non-Magnetic	Unshielded	0603 (1608 Metric)	AEC-Q200	37 200 MHz	2 %	Wirewound	250 MHz	1.7 GHz	Surface Mount	-55 °C	125 °C	0.039 "	1 mm	68 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	340 mOhm
Murata Power Solutions Inc. LQW18AS23NG00D
Murata Power Solutions Inc. LQW18AS33NJ0CD	220 mOhm			600 mA	Air	Unshielded	0603 (1608 Metric)		40 250 MHz	5 %	Wirewound	250 MHz	2.3 GHz	Surface Mount	-40 °C	85 °C	0.039 "	1 mm	33 nH	0.8 mm	0.063 in	1.6 mm	0.031 in
Murata Power Solutions Inc. LQW18AS23NJ00D
Murata Power Solutions Inc. LQW18AS68NJ0CD				600 mA	Air	Unshielded	0603 (1608 Metric)		37 200 MHz	5 %	Wirewound	200 MHz	1.7 GHz	Surface Mount	-40 °C	85 °C	0.039 "	1 mm	68 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	340 mOhm
Murata Power Solutions Inc. LQW18AS43NG0ZD		1608 Metric	0603	600 mA	Non-Magnetic	Unshielded	0603 (1608 Metric)	AEC-Q200	38 250 MHz	2 %	Wirewound	250 MHz	2 GHz	Surface Mount	-55 °C	125 °C	0.039 "	1 mm	43 nH	0.8 mm	0.063 in	1.6 mm	0.031 in	280 mOhm
Murata Power Solutions Inc. LQW18ASR12G0CD	650 mOhm			300 mA	Air	Unshielded	0603 (1608 Metric)		32 150 MHz	2 %	Wirewound	150 MHz	1.3 GHz	Surface Mount	-40 °C	85 °C	0.039 "	1 mm	120 nH	0.8 mm	0.063 in	1.6 mm	0.031 in
Murata Power Solutions Inc. LQW18AS5N1J00D	140 mOhm			700 mA	Non-Magnetic	Unshielded	0603 (1608 Metric)		20 250 MHz	5 %	Wirewound	250 MHz	5.7 GHz	Surface Mount	-40 °C	125 °C	0.039 "	1 mm	5.1 nH	0.8 mm	0.063 in	1.6 mm	0.031 in
Murata Power Solutions Inc. LQW18ASR11J00D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.05

Description

General part information

LQW18AS Series

Inductor

Documents

Technical documentation and resources
