1045725-1

Active

TE Connectivity Aerospace, Defense and Marine

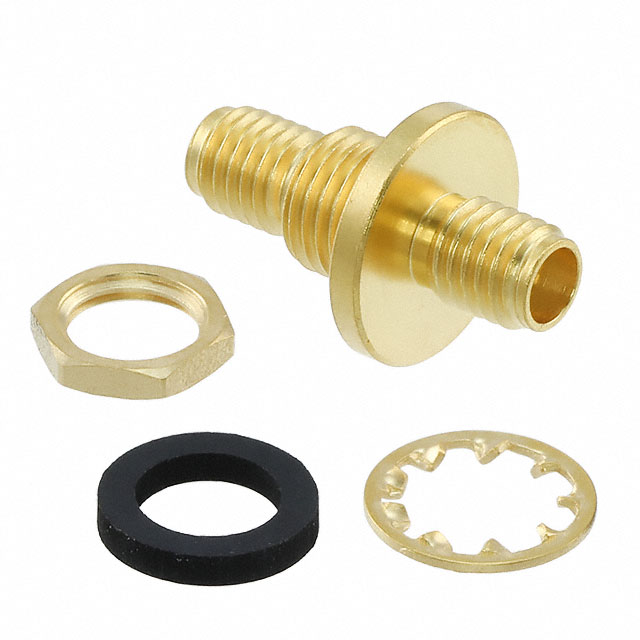

CONN ADAPT JACK-JACK OSSM 50 OHM

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN ADAPT JACK-JACK OSSM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	1045725-1

Adapter Series	OSSM to OSSM
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SSMA Jack, Female Socket
Convert To (Adapter End)	Female Socket, SSMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

Part	Body Material	Convert To (Adapter End)	Adapter Type	Center Contact Plating	Adapter Series	Impedance	Includes	Dielectric Material	Center Gender	Mounting Feature	Style	Body Finish	Convert From (Adapter End)	Conversion Type	Center Contact Material	Number of Ports	Contact Termination	Housing Color	Connector Style	Connector Type	Shield Termination	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]
TE Connectivity Aerospace, Defense and Marine 1045725-1	Stainless Steel	Female Socket SSMA Jack	Jack to Jack	Gold	OSSM to OSSM	50 Ohms	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Female to Female	Bulkhead	Straight	Gold	SSMA Jack Female Socket	Same Series	Beryllium Copper
TE Connectivity Aerospace, Defense and Marine 1045629-1	Stainless Steel			Gold		50 Ohms		Polytetrafluoroethylene (PTFE)		Bulkhead - Front Side Nut		Gold			Beryllium Copper	1	Solder Cup	Gold	SSMA	Female Socket Receptacle	Solder	Extended Insulation
TE Connectivity Aerospace, Defense and Marine 1045746-1	Stainless Steel	Female Socket SSMA Jack	Plug to Jack	Gold	OSSM to OSSM	50 Ohms		Polytetrafluoroethylene (PTFE)			Right Angle	Gold	SSMA Plug Male Pin	Same Series	Beryllium Copper								Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	18 GHz
TE Connectivity Aerospace, Defense and Marine 1045723-1	Stainless Steel	Female Socket SSMA Jack	Jack to Jack	Gold	OSSM to OSSM	50 Ohms	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	Female to Female	Bulkhead	Straight		SSMA Jack Female Socket	Same Series	Beryllium Copper									-65 ░C	125 °C	40 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 324.42

General part information

Adapter Coaxial Connector SSMA Jack, Female Socket To SSMA Jack, Female Socket 50 Ohms
