895-033-544-408
ActiveEDAC Inc.

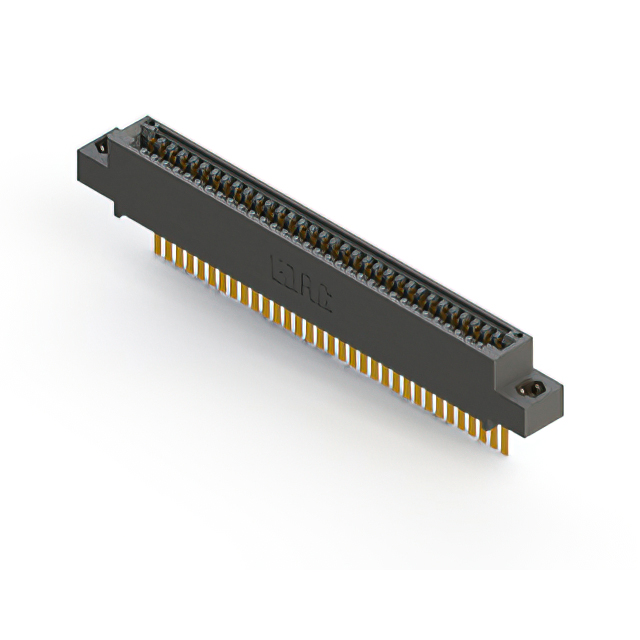

CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-033-544-408
ActiveEDAC Inc.
CONN EDGE SINGLE FML 33POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-033-544-408 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 33 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
895-033 Series
...
| Part | Contact Finish | Number of Rows | Termination | Number of Positions/Bay/Row [custom] | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Color | Mounting Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Number of Positions | Gender | Material - Insulation | Read Out | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 1 | Wire Wrap | 33 | 1 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | ||
EDAC Inc. | Gold | 1 | Solder | 33 | 1 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole Right Angle | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | ||
EDAC Inc. | Gold | 1 | Wire Wrap | 33 | 1 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | ||||
EDAC Inc. | Gold | 1 | Solder | 33 | 1 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole Right Angle | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 1 | Solder | 33 | 1 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 1 | Solder | 33 | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole Right Angle | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 1 | Wire Wrap | 33 | 1 | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 1 | Wire Wrap | 33 | 1 | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | ||||
EDAC Inc. | Gold | 1 | Wire Wrap | 33 | 1 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single | ||||
EDAC Inc. | Gold | 1 | Solder | 33 | 1 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Through Hole | Cantilever | 125 °C | -40 °C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 33 | Female | Polyphenylene Sulfide (PPS) | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-033 Series
33 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
