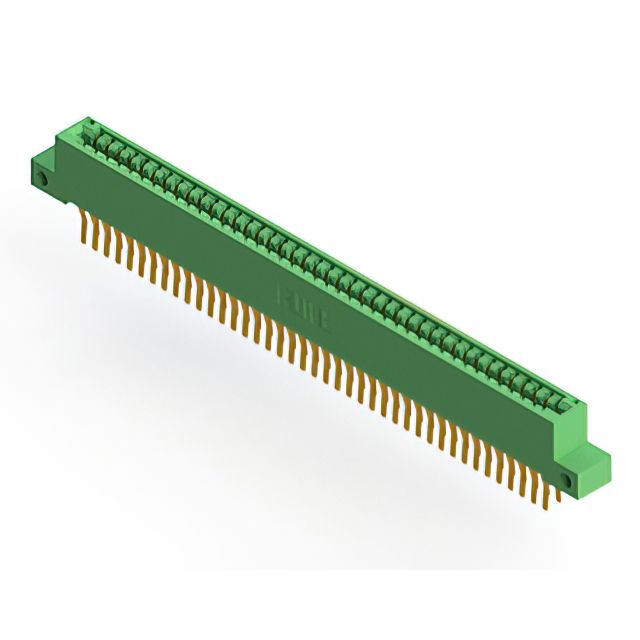

346-082-560-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-082-560-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-082-560-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
346-082 Series
...
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Pitch [x] | Pitch [x] | Termination | Material - Insulation | Read Out | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Gender | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole | 0.125 in | 3.18 mm | Wire Wrap | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | |||
EDAC Inc. | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Through Hole Right Angle | 0.125 in | 3.18 mm | Solder Wire Wrap | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Board Edge Straddle Mount | 0.125 in | 3.18 mm | Solder | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | Card Extender | ||||
EDAC Inc. | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Board Edge Straddle Mount | 0.125 in | 3.18 mm | Solder | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | Card Extender | ||
EDAC Inc. | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Board Edge Straddle Mount | 0.125 in | 3.18 mm | Solder | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | Card Extender | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 0.125 in | 3.18 mm | Solder | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | |||||
EDAC Inc. | Board Edge Straddle Mount | 0.125 in | 3.18 mm | Solder Eyelet(s) | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | Card Extender | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Through Hole Right Angle | 0.125 in | 3.18 mm | Solder Wire Wrap | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Through Hole Right Angle | 0.125 in | 3.18 mm | Solder Wire Wrap | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Through Hole | 0.125 in | 3.18 mm | Solder | Polyester Thermoplastic | Dual | Cantilever | 10 Áin | 0.25 Ám | Green | Gold | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | 2 | -40 °C | 105 ░C | 82 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.84 | |
Description
General part information
346-082 Series
82 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
