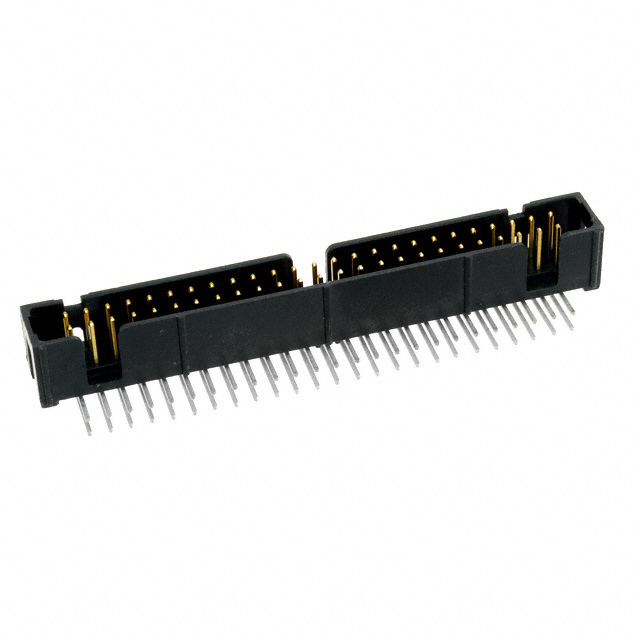

N2550-5002-UG
Obsolete3M (TC)
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
N2550-5002-UG
Obsolete3M (TC)
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N2550-5002-UG |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Length - Post | 2.84 mm |
| Contact Length - Post | 0.112 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.75 A |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.338 in |
| Insulation Height | 8.59 mm |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
N2550 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Features | Material Flammability Rating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Shape | Number of Positions | Number of Rows | Contact Finish - Post | Contact Finish - Mating | Insulation Height | Insulation Height | Current Rating (Amps) | Termination | Shrouding | Contact Type | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Connector Type | Fastening Type | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 105 ░C | -55 °C | Copper Alloy | Keying Slot | UL94 V-0 | Black | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | Through Hole Right Angle | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 50 | 2 | Tin-Lead | Gold | 0.338 in | 8.59 mm | 1.75 A | Solder | Shrouded - 4 Wall | Male Pin | 2.84 mm | 0.112 in | All | Header | Push-Pull | Board to Board Cable | 15 µin | 0.38 µm | ||
3M (TC) | 105 ░C | -55 °C | Copper Alloy | Keying Slot | UL94 V-0 | Black | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | Through Hole | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 50 | 2 | Tin | Gold | 1.75 A | Solder | Shrouded - 4 Wall | Male Pin | 2.84 mm | 0.112 in | All | Header | Push-Pull | Board to Board Cable | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | ||
3M (TC) | 105 ░C | -55 °C | Copper Alloy | Keying Slot | UL94 V-0 | Black | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | Through Hole Right Angle | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 50 | 2 | Tin | Gold | 0.338 in | 8.59 mm | 1.75 A | Solder | Shrouded - 4 Wall | Male Pin | 2.84 mm | 0.112 in | All | Header | Push-Pull | Board to Board Cable | 30 Áin | 0.76 Ám | ||
3M (TC) | 105 ░C | -55 °C | Copper Alloy | Keying Slot | UL94 V-0 | Black | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | Through Hole | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 50 | 2 | Tin-Lead | Gold | 1.75 A | Solder | Shrouded - 4 Wall | Male Pin | 3.94 mm | 0.155 " | All | Header | Push-Pull | Board to Board Cable | 30 Áin | 0.76 Ám | 9.91 mm | 0.39 in | ||
3M (TC) | 105 ░C | -55 °C | Copper Alloy | Keying Slot | UL94 V-0 | Black | 200 µin | 5.08 µm | 2.54 mm | 0.1 in | Through Hole | 0.1 in | 2.54 mm | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Square | 50 | 2 | Tin-Lead | Gold | 1.75 A | Solder | Shrouded - 4 Wall | Male Pin | 2.84 mm | 0.112 in | All | Header | Push-Pull | Board to Board Cable | 15 µin | 0.38 µm | 9.91 mm | 0.39 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
N2550 Series
Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
