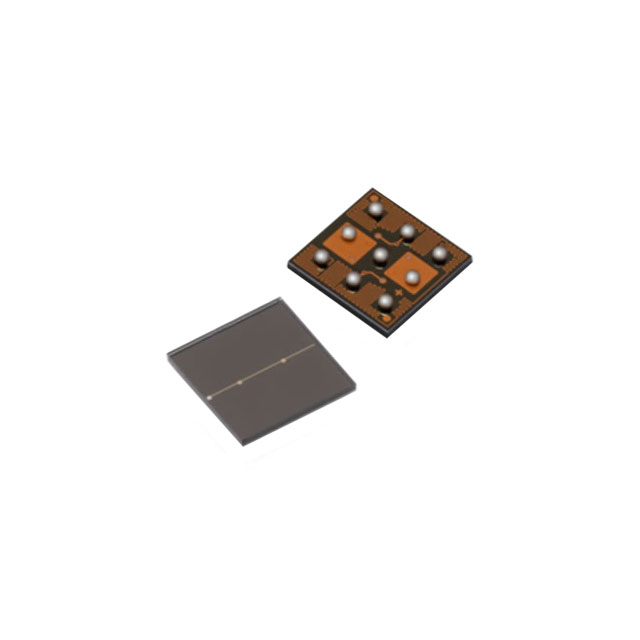

AFBR-S4N33C013
ObsoleteBroadcom Limited
SENSOR PHOTODIODE 420NM 9UBGA
Deep-Dive with AI
Search across all available documentation for this part.
AFBR-S4N33C013
ObsoleteBroadcom Limited
SENSOR PHOTODIODE 420NM 9UBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFBR-S4N33C013 |
|---|---|
| Active Area | 9 mm² |
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) | 300 nA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | CSPBGA, 9-UBGA |
| Spectral Range [Max] | 900 nm |
| Spectral Range [Min] | 300 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 26.9 V |
| Wavelength | 420 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 24.55 | |
| 10 | $ 19.22 | |||
Description
General part information
AFBR-S4N33C013 Series
Photodiode 420nm 9-UBGA, CSPBGA
Documents
Technical documentation and resources
No documents available
