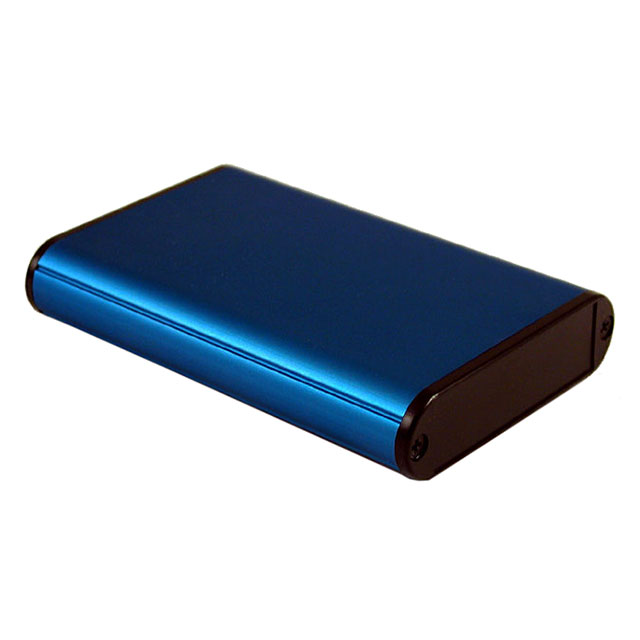

1455B1002BU

Active

Hammond Manufacturing

BOX ALUM BLUE 3.98"L X 2.82"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1455J1601 Drawing

1455B1002BU

Active

Hammond Manufacturing

BOX ALUM BLUE 3.98"L X 2.82"W

Deep-Dive with AI

Documents1455J1601 Drawing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1455B1002BU

Area (L x W)	11.2 in²
Area (L x W)	72 cm²
Color	Blue
Container Type	Box
Design	End Panel(s)
Features	Card Guides
Height [z]	0.748 in
Height [z]	19 mm
Material	Aluminum
Size / Dimension [x]	100.99 mm
Size / Dimension [x]	3.976 "
Size / Dimension [y]	2.824 in
Size / Dimension [y]	71.73 mm
Thickness	1.52 mm
Thickness	0.06 in
Weight	0.1 lb
Weight	45.36 g

1455 Series

...

Part	For Use With/Related Products	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Weight	Weight	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Features	Thickness	Thickness	Design	Size / Dimension [z]	Height [diameter]	Height [diameter]
Hammond Manufacturing 1455JPLY	1455J Series	Yellow	81.13 mm	0.354 in	8.99 mm	3.194 in	30.12 mm	1.186 in	ABS
Hammond Manufacturing 1455A1002BK		Black				100.99 mm		70 mm	Aluminum	0.1 lb	45.36 g	11 in²	71 cm²	0.472 "	11.99 mm	2.756 in	3.976 "	Box	Card Guides	1.52 mm	0.06 in	End Panel(s)
Hammond Manufacturing 1455QPLY	1455Q Series	Yellow		10.49 mm		129.01 mm		55.12 mm	ABS							2.17 in	5.079 in						0.413 "
Hammond Manufacturing 1455K1201BK		Black				120 mm		78 mm	Aluminum			14.5 in²	94 cm²			3.071 "	4.724 "	Box	Card Guides	1.52 mm	0.06 in	End Panel(s)		1.693 in	43 mm
Hammond Manufacturing 1455LPLBK		Black		8.99 mm		106.12 mm		33.63 mm	ABS							1.324 in	4.178 in						0.354 in
Hammond Manufacturing 1455D601BU		Blue				60 mm		42.5 mm	Aluminum			3.95 in²	25.5 cm²			1.673 in	2.362 in	Box	Card Guides	1.2 mm	0.047 in	End Panel(s)
Hammond Manufacturing 1455D601RD		Red				60 mm		42.5 mm	Aluminum			3.95 in²	25.5 cm²			1.673 in	2.362 in	Box	Card Guides	1.2 mm	0.047 in	End Panel(s)
Hammond Manufacturing 1455L1601		Natural				159.99 mm		103 mm	Aluminum	0.5 lbs	226.8 g	25.5 in˛	165 cm˛			4.055 in	6.299 "	Box	Card Guides	1.52 mm	0.06 in	End Panel(s)		1.201 in	30.51 mm
Hammond Manufacturing 1455JBRED	1455J Series	Red	81.13 mm	0.354 in	8.99 mm	3.194 in	30.12 mm	1.186 in	ABS
Hammond Manufacturing 1455B1002BU		Blue				100.99 mm		71.73 mm	Aluminum	0.1 lb	45.36 g	11.2 in²	72 cm²	0.748 in	19 mm	2.824 in	3.976 "	Box	Card Guides	1.52 mm	0.06 in	End Panel(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.33
		5	$ 12.59
		10	$ 11.85
		25	$ 11.10
		50	$ 10.36
		100	$ 10.18
		250	$ 9.99
		500	$ 9.85
		1000	$ 9.62

Description

General part information

1455 Series

Box Aluminum Blue End Panel(s) 3.976" L x 2.824" W (100.99mm x 71.73mm) X 0.748" (19.00mm)

Documents

Technical documentation and resources

1455J1601 Drawing

Datasheet
