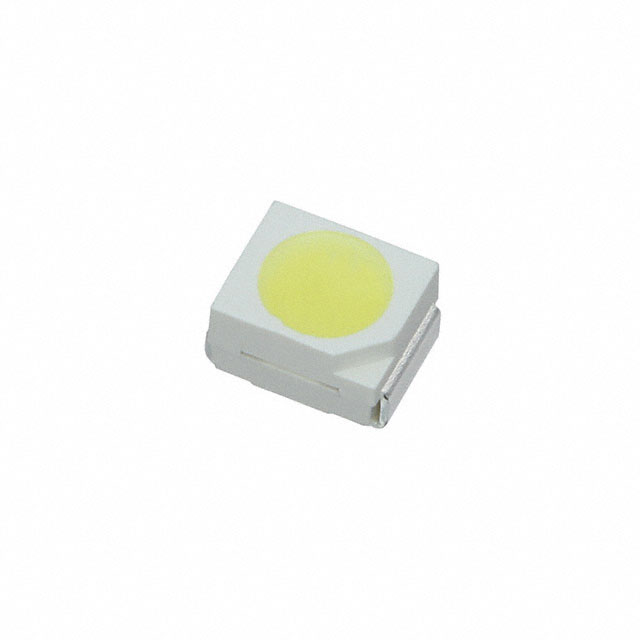

CLM1C-WKW-CWBXBA453

Active

Cree LED

LED COOL WHITE DIFF 2PLCC SMD

Search across all available documentation for this part.

Active

Cree LED

LED COOL WHITE DIFF 2PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Transparency	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - Test	Configuration	Viewing Angle	Wavelength - Dominant [custom]	Package / Case	Mounting Type	Millicandela Rating	Color	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]
Cree LED CLM1C-WKW-CWBXBA453	Yellow	Diffused	3.2 V	2-PLCC	20 mA	Standard	120 °	6800 K	2-SMD J-Lead	Surface Mount	1820 mcd	Cool White	2.05 mm
Cree LED CLM1C-WKW-CVBWB233	Yellow	Diffused	3.2 V	2-PLCC	20 mA	Standard	120 °	6800 K	2-PLCC	Surface Mount	1350 mcd	Cool White	2.05 mm	2.8 mm	3.2 mm
Cree LED CLM1C-WKW-FVAWB153				2-PLCC			120 °		2-PLCC	Surface Mount			2.05 mm
Cree LED CLM1C-WKW-CWBXB153			3.2 V	2-PLCC	20 mA	Standard	120 °	6800 K	2-SMD J-Lead	Surface Mount	1800 mcd	Cool White	2.05 mm
Cree LED CLM1C-WKW-CWBXB453	Yellow	Diffused	3.2 V	2-PLCC	20 mA	Standard	120 °	6800 K	2-SMD J-Lead	Surface Mount	2100 mcd	Cool White		2.8 mm	3.2 mm	2.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.18

General part information

White, Cool 6800K LED Indication - Discrete 3.2V 2-SMD, J-Lead

Technical documentation and resources
