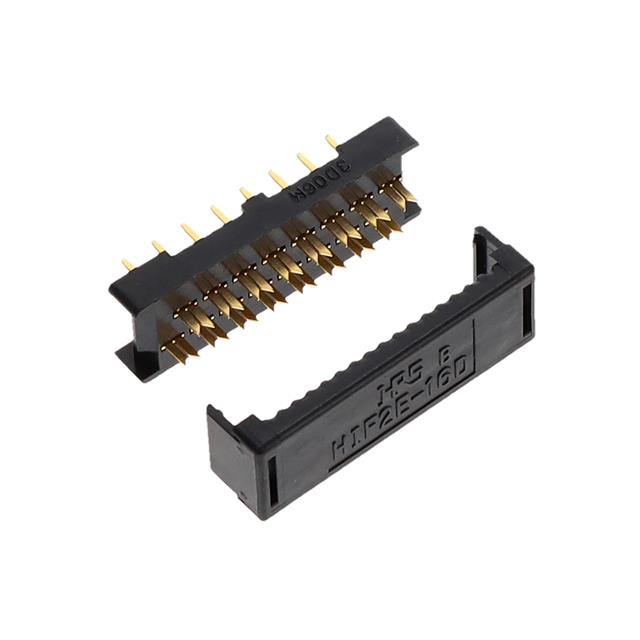

HIF2E-16D-2.54RB(20)

Active

Hirose Electric USA, Inc.

CONN HOUSING 2.54MM DUAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF2E-16D-2.54RB(20)

Active

Hirose Electric USA, Inc.

CONN HOUSING 2.54MM DUAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF2E-16D-2.54RB(20)

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Black
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG

HIF2E Series

Part	Accessory Type	Connector Type	Mounting Type	Number of Positions	Color	Row Spacing [x]	Row Spacing	Number of Positions Loaded	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch	Number of Rows	Cable Termination	Wire Gauge	Contact Finish	Number of Positions
Hirose Electric USA, Inc. HIF2E-10PB	Press Block
Hirose Electric USA, Inc. HIF2E-16D-2.54RB(20)		DIP Header Ribbon Cable	Through Hole	16	Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold
Hirose Electric USA, Inc. HIF2E-20D-2.54RA(20)		DIP Header Ribbon Cable	Through Hole		Gray	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	20
Hirose Electric USA, Inc. HIF2E-10D-2.54RA(20)		DIP Header Ribbon Cable	Through Hole		Gray	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	10
Hirose Electric USA, Inc. HIF2E-20D-2.54RA		DIP Header Ribbon Cable	Through Hole		Gray	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	20
Hirose Electric USA, Inc. HIF2E-14D-2.54RB		DIP Header Ribbon Cable	Through Hole		Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	14
Hirose Electric USA, Inc. HIF2E-34D-2.54RB		DIP Header Ribbon Cable	Through Hole		Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	34
Hirose Electric USA, Inc. HIF2E-40D-2.54RB		DIP Header Ribbon Cable	Through Hole		Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	40
Hirose Electric USA, Inc. HIF2E-16D-2.54RB		DIP Header Ribbon Cable	Through Hole	16	Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold
Hirose Electric USA, Inc. HIF2E-14D-2.54RB(20)		DIP Header Ribbon Cable	Through Hole		Black	0.1 in	2.54 mm	All	0.1 in	2.54 mm	1.27 mm	0.05 in	2	IDC	28 AWG	Gold	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.18
		25	$ 1.96
		50	$ 1.82
		100	$ 1.68
		250	$ 1.52
		500	$ 1.42
		1000	$ 1.32
		2500	$ 1.21

Description

General part information

HIF2E Series

16 Position Ribbon Cable, DIP Header Connector Black IDC 28 AWG Through Hole
