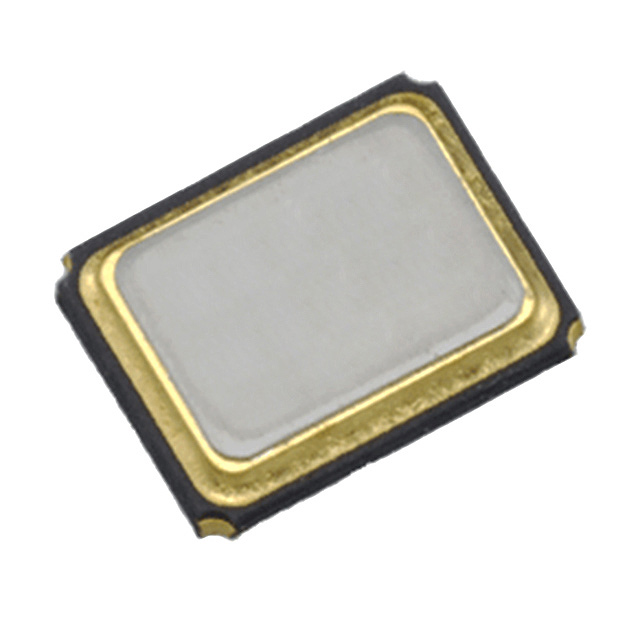

FA-128 24.576M-N0AAAAB50REB

Active

EPSON

FA-128 24.576M-N0AAAAB50REB: XTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FA-128 24.576M-N0AAAAB50REB

Active

EPSON

FA-128 24.576M-N0AAAAB50REB: XTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FA-128 24.576M-N0AAAAB50REB

ESR (Equivalent Series Resistance)	80 Ohm
Frequency	24.576 MHz
Height - Seated (Max) [Max] [z]	0.5 mm
Height - Seated (Max) [Max] [z]	0.02 "
Load Capacitance	5 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Package / Case	4-SMD, No Lead
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Type	MHz Crystal

FA-128 Series

Part	Operating Mode	Frequency Tolerance	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Frequency	Load Capacitance
EPSON FA-128 24.0000MF10V-W	Fundamental	10 ppm	Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	24 MHz
EPSON FA-128 27.1200ME15P-AJ3	Fundamental	15 ppm	Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	60 Ohms	0.5 mm	0.02 "	4-SMD No Lead	27.12 MHz
EPSON FA-128 25.0000M-W	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	25 MHz
EPSON FA-128 24.576M-N0AAAAB50REB	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	24.576 MHz	5 pF
EPSON FA-128 25.00M-80AANNG80RE0	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	25 MHz	8 pF
EPSON FA-128 32.00M-60AAAAN60REB	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	60 Ohms	0.5 mm	0.02 "	4-SMD No Lead	32 MHz	6 pF
EPSON FA-128 25.0000MD30Z-W7	Fundamental	30 ppm	Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	25 MHz
EPSON FA-128 20.00M-A0AAYYG80RE3	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	100 Ohms	0.5 mm	0.02 "	4-SMD No Lead	20 MHz	8 pF
EPSON FA-128 25.0000M-W3	Fundamental		Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	80 Ohm	0.5 mm	0.02 "	4-SMD No Lead	25 MHz
EPSON FA-128 38.4000MF10P-AG3	Fundamental	10 ppm	Surface Mount	MHz Crystal	2 mm	0.063 in	1.6 mm	0.079 in	60 Ohms	0.5 mm	0.02 "	4-SMD No Lead	38.4 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.81

Description

General part information

FA-128 Series

24.576 MHz Crystal 5pF 80 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources
