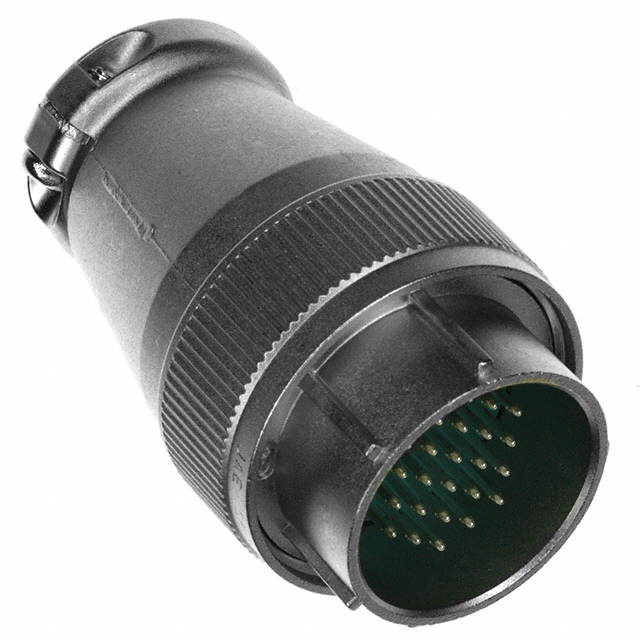

SRCN6A25-24P

Active

JAE Electronics

CONN PLUG MALE 24P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

SRCN6A25-24P

Active

JAE Electronics

CONN PLUG MALE 24P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN6A25-24P

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [diameter]	17 mm
Cable Opening [diameter]	0.669 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	24
Shell Size - Insert [Min]	25
Voltage Rating	350 V, 250 VAC

SRCN6A25 Series

Part	Contact Finish - Mating	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Features	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Voltage Rating	Mounting Type	Contact Material	Insert Material	Primary Material	Backshell Material, Plating	Applications	Material Flammability Rating	Shell Finish	Color	Shell Material	Shell Size - Insert	Number of Positions
JAE Electronics SRCN6A25-24P	Silver	N	24	25	5 A	Backshell Cable Clamp Coupling Nut	24	17 mm	0.669 in	-25 °C	85 °C	Male Pins Plug	250 VAC 350 V	Free Hanging (In-Line)	Copper Alloy	Plastic	Metal	Aluminum Alloy Nickel	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Silver	Aluminum Alloy
JAE Electronics SRCN6A25-16P	Silver	N			10 A	Backshell Cable Clamp Coupling Nut		17 mm	0.669 in	-25 °C	85 °C	Male Pins Plug	250 VAC 350 V	Free Hanging (In-Line)	Copper Alloy	Plastic	Metal	Aluminum Alloy Nickel	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Silver	Aluminum Alloy	25-16	16
JAE Electronics SRCN6A25-16S	Silver	N			10 A	Backshell Cable Clamp Coupling Nut		17 mm	0.669 in	-25 °C	85 °C	Female Sockets Plug	250 VAC 350 V	Free Hanging (In-Line)	Copper Alloy	Plastic	Metal	Aluminum Alloy Nickel	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Silver	Aluminum Alloy	25-16	16
JAE Electronics SRCN6A25-24S	Silver	N	24	25	5 A	Backshell Cable Clamp Coupling Nut	24	17 mm	0.669 in	-25 °C	85 °C	Female Sockets Plug	250 VAC 350 V	Free Hanging (In-Line)	Copper Alloy	Plastic	Metal	Aluminum Alloy Nickel	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Nickel	Silver	Aluminum Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.10
		10	$ 13.95
		25	$ 13.22
		50	$ 13.03
		100	$ 11.50
		250	$ 10.73
		500	$ 10.50
		1000	$ 9.97

Description

General part information

SRCN6A25 Series

24 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Circular Connectors

Datasheet
