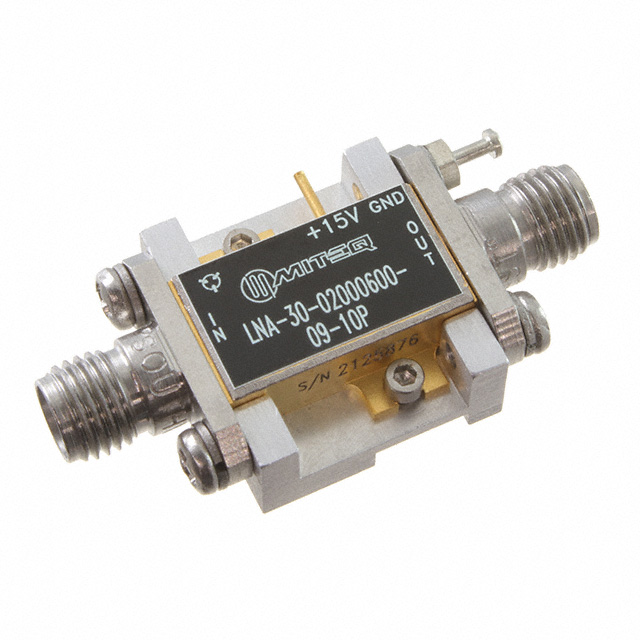

LNA-30-02000600-09-10P

Active

L3 Narda-MITEQ

IC RF AMP VSAT 2GHZ-6GHZ MODULE

Search across all available documentation for this part.

Active

L3 Narda-MITEQ

IC RF AMP VSAT 2GHZ-6GHZ MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Test Frequency [Max]	Test Frequency [Min]	Gain	Current - Supply	Package / Case	Frequency [Max]	Frequency [Min]	Voltage - Supply	Supplier Device Package	P1dB	Noise Figure	RF Type	Mounting Type
L3 Narda-MITEQ LNA-30-02002000-42-20P	20 GHz	2 GHz	30 dBi	400 mA	Module SMA Connectors	20 GHz	2 GHz	15 V	Module	20 dBm	4.2 dB	VSAT
L3 Narda-MITEQ LNA-30-18002650-20-10P	26.5 GHz	18 GHz	30 dBi	250 mA	Module SMA Connectors	26.5 GHz	18 GHz	15 V	Module	10 dBm	2 dB	VSAT
L3 Narda-MITEQ LNA-30-02000600-09-10P	6 GHz	2 GHz	30 dBi	200 mA	Module SMA Connectors	6 GHz	2 GHz	15 V	Module	10 dBm	0.9 dB	VSAT	Connector Mount
L3 Narda-MITEQ LNA-30-02000400-05-10P	4 GHz	2 GHz	30 dBi	200 mA	Module SMA Connectors	4 GHz	2 GHz	15 V	Module	10 dBm	0.5 dB	VSAT
L3 Narda-MITEQ LNA-30-00102600-40-15P	26 GHz	100 MHz	30 dBi	400 mA	Module SMA Connectors	26 GHz	100 MHz	15 V	Module	15 dBm	4 dB	VSAT
L3 Narda-MITEQ LNA-30-12001800-20-15P	18 GHz	12 GHz	30 dBi	275 mA	Module SMA Connectors	18 GHz	12 GHz	15 V	Module	15 dBm	2 dB	VSAT
L3 Narda-MITEQ LNA-30-00100800-20-15P	8 GHz	100 MHz	30 dBi	300 mA	Module SMA Connectors	8 GHz	100 MHz	15 V	Module	15 dBm	2 dB	VSAT
L3 Narda-MITEQ LNA-30-02001800-40-20P	18 GHz	2 GHz	30 dBi	400 mA	Module SMA Connectors	18 GHz	2 GHz	15 V	Module	20 dBm	4 dB	VSAT
L3 Narda-MITEQ LNA-30-08001200-35-25P	12 GHz	8 GHz	30 dBi		Module SMA Connectors	12 GHz	8 GHz	15 V	Module	25 dBm	3.5 dB	VSAT
L3 Narda-MITEQ LNA-30-08001200-30-20P	12 GHz	8 GHz	30 dBi	275 mA	Module SMA Connectors	12 GHz	8 GHz	15 V	Module	20 dBm	3 dB	VSAT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Amplifier IC VSAT 2GHz ~ 6GHz Module
