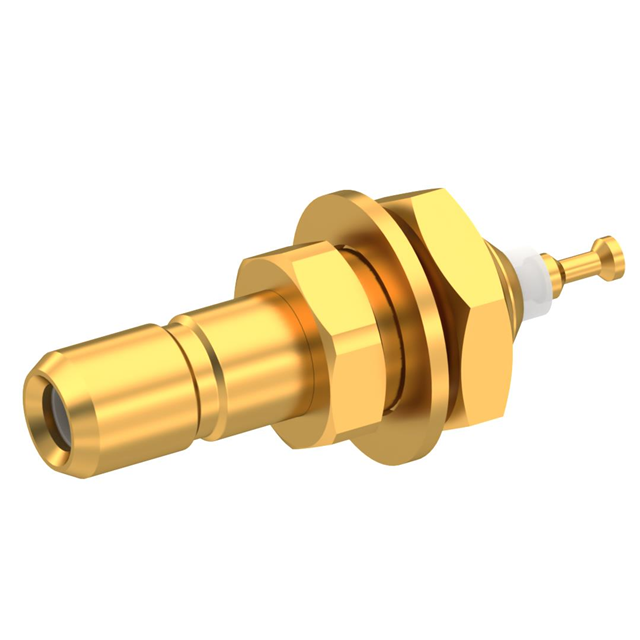

R203553000

Active

Radiall USA, Inc.

SSMB / BULKHEAD JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / BULKHEAD JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R203553000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Receptacle
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Body Material	Number of Ports	Impedance	Center Contact Plating	Center Contact Material	Mating Cycles	Frequency - Max [Max]	Voltage Rating	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Connector Style	Contact Termination	Fastening Type	Housing Color	Mounting Feature
Radiall USA, Inc. R203553000	Polytetrafluoroethylene (PTFE)	Brass	1	50 Ohms	Gold	Beryllium Copper	500	4 GHz	250 VDC	Solder	Gold	-65 ░C	165 °C	Male Pin Receptacle	SSMB	Solder	Snap-On	Gold	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.86

General part information

SSMB Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder
