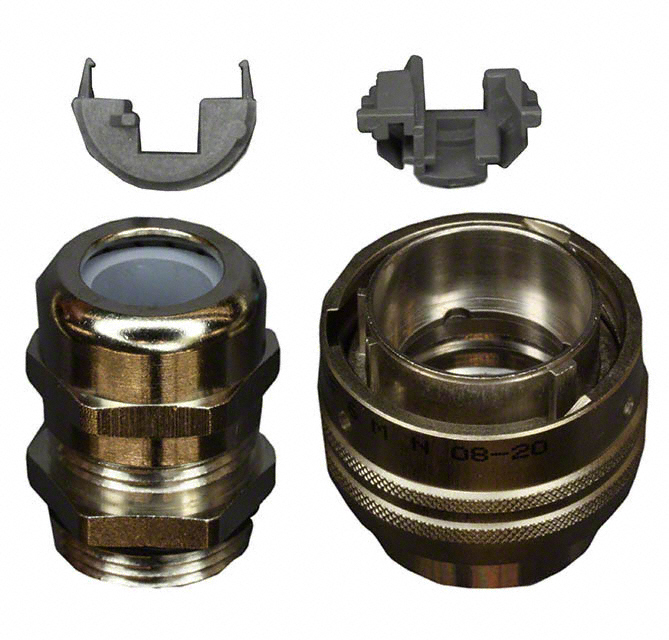

RJF6MN

Active

Amphenol Socapex

CONN MOD PLUG HSG RJ45 SILVER

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD PLUG HSG RJ45 SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	RJF6MN

Color	Silver
Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Bayonet Lock
Features	Toolless, Shock Resistant, Vibration Resistant
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded

Part	Shielding	Features	Color	Mating Cycles	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Note	Ingress Protection
Amphenol Socapex RJF6MN	Unshielded	Shock Resistant Toolless Vibration Resistant	Silver	500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF6MZN	Unshielded	Toolless Vibration Resistant		500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF6G	Unshielded	Shock Resistant Toolless Vibration Resistant	Green	500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF6MB	Unshielded	Shock Resistant Toolless Vibration Resistant	Black	500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF6B	Unshielded	Shock Resistant Toolless Vibration Resistant	Black	500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof
Amphenol Socapex RJF6MG	Unshielded	Shock Resistant Toolless Vibration Resistant	Green	500	Housing for Prewired RJ45 Cordset	Bayonet Lock	85 °C	-40 °C	Free Hanging (In-Line)	Plug Not Provided	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Housing Housing for Prewired RJ45 Cordset Modular Connector Bayonet Lock Silver
