AT13-18PD-BM01BK

Active

Amphenol Sine Systems Corp

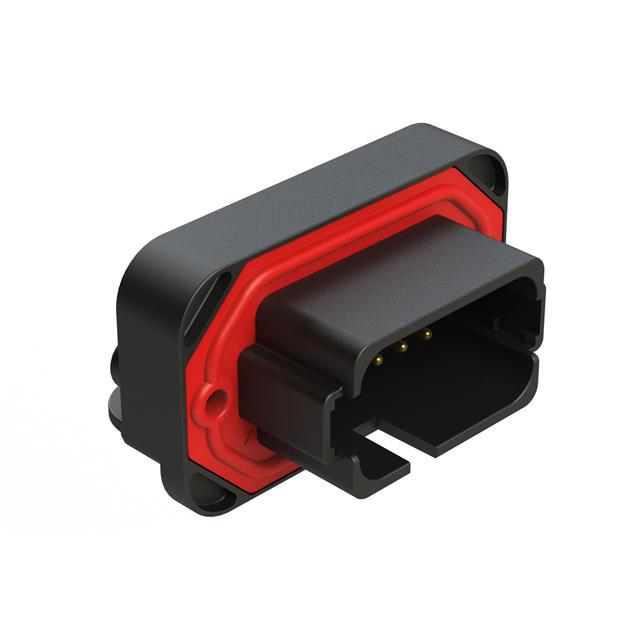

18 POSITION, RIGHT ANGLE FLANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT13-18PD-BM01BK

Active

Amphenol Sine Systems Corp

18 POSITION, RIGHT ANGLE FLANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT13-18PD-BM01BK

Applications	Industrial, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Board Guide, Mounting Flange
Ingress Protection	IP68, IP69K
Insulation Color	Black
Insulation Height	1.39 in
Insulation Height	35.3 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.7 mm
Pitch - Mating	0.185 "
Row Spacing - Mating	4.9 mm
Row Spacing - Mating	0.193 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

AT13 Series

...

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Insulation Material	Voltage Rating	Number of Positions	Number of Positions Loaded	Mounting Type	Termination	Contact Type	Contact Shape	Insulation Color	Features	Shrouding	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Applications	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Rows	Ingress Protection	Contact Finish - Post	For Use With/Related Products	Accessory Type	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating
Amphenol Sine Systems Corp AT13-6P-BM03GRY	0.25 in	6.35 mm	0.122 "	3.1 mm	Thermoplastic	250 VDC	6	All	Through Hole Right Angle	Solder	Male Pin	Circular	Gray	Board Guide Mating Flange Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Tin
Amphenol Sine Systems Corp AT13-217-1605-SR							1																						AT Series	Plug Sealing
Amphenol Sine Systems Corp AT13-18PA-BM03BK	4.9 mm		0.114 in	2.9 mm	Thermoplastic	250 VDC	18	All	Through Hole Right Angle	Solder	Male Pin	Circular	Black	Board Guide Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	3	IP68 IP69K				0.193 "	4.7 mm	0.185 "
Amphenol Sine Systems Corp AT13-18PD-BM01BK	4.9 mm		0.114 in	2.9 mm	Thermoplastic	250 VDC	18	All	Through Hole Right Angle	Solder	Male Pin	Circular	Black	Board Guide Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	3	IP68 IP69K				0.193 "	4.7 mm	0.185 "	Gold
Amphenol Sine Systems Corp AT13-12PB-BM03	0.25 in	6.35 mm	0.122 "	3.1 mm	Thermoplastic	250 VDC	12	All	Through Hole Right Angle	Solder	Male Pin	Circular	Black	Board Guide Mating Flange Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Tin
Amphenol Sine Systems Corp AT13-12PA-BM03	0.25 in	6.35 mm	0.122 "	3.1 mm	Thermoplastic	250 VDC	12	All	Through Hole Right Angle	Solder	Male Pin	Circular	Gray	Board Guide Mating Flange Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Tin
Amphenol Sine Systems Corp AT13-12PA-BM02	0.25 in	6.35 mm	0.122 "	3.1 mm	Thermoplastic	250 VDC	12	All	Through Hole Right Angle	Solder	Male Pin	Circular	Gray	Board Guide Mating Flange Mounting Flange Potting Wall	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Gold						Gold
Amphenol Sine Systems Corp AT13-08PC-BM01	9.1 mm		0.122 "	3.1 mm	Thermoplastic	250 VDC	8	All	Through Hole Right Angle	Solder	Male Pin	Circular	Green	Board Guide Mating Flange Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Gold			0.358 in			Gold
Amphenol Sine Systems Corp AT13-12PB-BM21CP	9.1 mm		0.122 "	3.1 mm	Thermoplastic		12	All	Panel Mount Right Angle Through Hole	Solder	Male Pin	Circular	Black	Board Guide Mounting Flange	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A		Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Tin			0.358 in
Amphenol Sine Systems Corp AT13-6P2-BM04BLU	9.1 mm		0.122 "	3.1 mm	Thermoplastic	250 VDC	6	All	Through Hole Right Angle	Solder	Male Pin	Circular	Blue	Board Guide Mating Flange Mounting Flange Potting Wall	Shrouded - 4 Wall	1.39 in	35.3 mm	Receptacle	13 A	Automotive Industrial	Board to Cable/Wire	Copper Alloy	-55 °C	125 °C	Latch Holder	2	IP67	Tin			0.358 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	140	$ 22.23

Description

General part information

AT13 Series

Connector Header Through Hole, Right Angle 18 position 0.185" (4.70mm)
