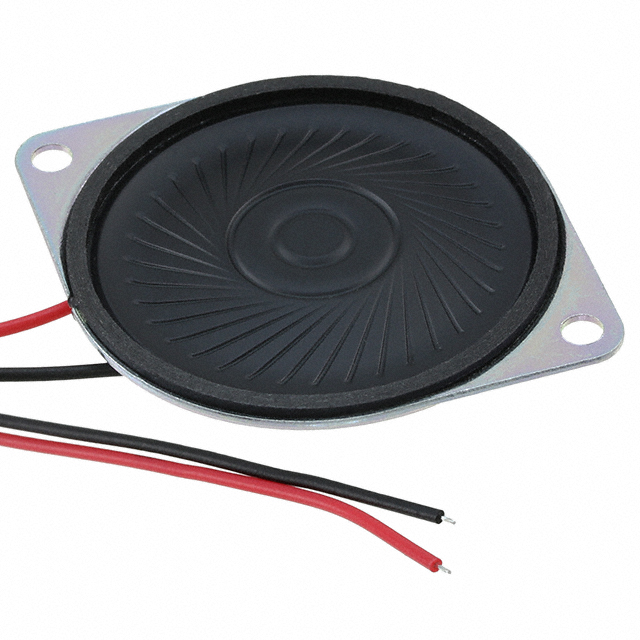

CMS-40504N-L152

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 100DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 4OHM 2W TOP PORT 100DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-40504N-L152

Efficiency - dBA	100 dBA
Efficiency - Testing	1W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	500 Hz
Frequency Range [Max]	7 kHz
Frequency Range [Min]	400 Hz
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Impedance	4 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	2.5 W
Power - Rated	2 W
Shape	Round
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Technology	Magnetic
Termination	Wire Leads
Type	General Purpose

Part	Material - Magnet	Material - Cone	Port Location	Power - Max [Max]	Efficiency - dBA	Impedance	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Frequency Range [Min]	Frequency Range [Max]	Shape	Frequency - Self Resonant	Power - Rated	Efficiency - Testing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - Type	Technology	Distortion Rating	Operating Temperature [Max]	Operating Temperature [Min]
CUI Devices CMS-40504N-L152	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	Top	2.5 W	100 dBA	4 Ohms	Wire Leads	1.575 "	40 mm	General Purpose	400 Hz	7 kHz	Round	500 Hz	2 W	1W/100mm	0.197 in	5 mm	Sound Pressure Level (SPL)	Magnetic
CUI Devices CMS-40504N-L152B	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	Top	2.5 W	100 dBA	4 Ohms	Wire Leads with Connector	1.575 "	40 mm	General Purpose	400 Hz	7 kHz	Round	500 Hz	2 W	1W/100mm	0.197 in	5 mm	Sound Pressure Level (SPL)	Magnetic	5 %	70 °C	-30 ░C
CUI Devices CMS-40504N-L152A	Nd-Fe-B	Polyester Polyethylene Terephthalate (PET)	Top	2.5 W	100 dBA	4 Ohms	Wire Leads with Connector	1.575 "	40 mm	General Purpose	400 Hz	7 kHz	Round	500 Hz	2 W	1W/100mm	0.197 in	5 mm	Sound Pressure Level (SPL)	Magnetic	5 %	70 °C	-30 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Ohms General Purpose Speaker 2 W 400 Hz ~ 7 kHz Top Round
