DSPIC33FJ64MC706AT-I/MR

Active

Microchip Technology

IC MCU 16BIT 64KB FLASH 64VQFN

Search across all available documentation for this part.

Active

Microchip Technology

IC MCU 16BIT 64KB FLASH 64VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	DSPIC33FJ64MC706AT-I/MR

Connectivity	IrDA, UART/USART, I2C, CANbus, SPI, LINbus
Core Processor	dsPIC
Core Size	16-Bit
Data Converters	A/D 16x10b/12b
Mounting Type	Surface Mount
Number of I/O	53
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

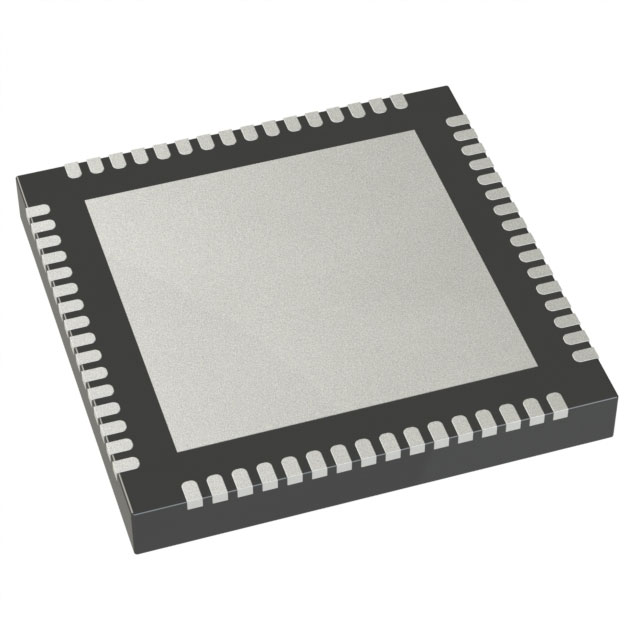

Package / Case	64-VFQFN Exposed Pad
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	16 K
Speed	40 MIPs
Supplier Device Package	64-VQFN (9x9)

Optimized for Motor Control, CAN

Part	Program Memory Size	Supplier Device Package	Connectivity	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Number of I/O	Package / Case	RAM Size	Speed	Mounting Type	Core Size	Program Memory Type	Data Converters	Oscillator Type	Qualification	Grade
Microchip Technology DSPIC33FJ64MC706AT-I/MR	64 KB	64-VQFN (9x9)	CANbus I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	dsPIC	53	64-VFQFN Exposed Pad	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal
Microchip Technology DSPIC33FJ64MC706AT-I/PT	64 KB	64-TQFP (10x10)	CANbus I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	dsPIC	53	64-TQFP	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal
Microchip Technology DSPIC33FJ64MC706A-I/PT	64 KB	64-TQFP (10x10)	CANbus I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	dsPIC	53	64-TQFP	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal
Microchip Technology DSPIC33FJ64MC706T-I/PT	64 KB	64-TQFP (10x10)	CANbus I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	dsPIC	53	64-TQFP	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal
Microchip Technology DSPIC33FJ64MC706A-E/PT	64 KB	64-TQFP (10x10)	CANbus I2C IrDA LINbus SPI UART/USART	125 °C	-40 °C	dsPIC	53	64-TQFP	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal	AEC-Q100	Automotive
Microchip Technology DSPIC33FJ64MC706-I/PT	64 KB	64-TQFP (10x10)	CANbus I2C IrDA LINbus SPI UART/USART	85 °C	-40 °C	dsPIC	53	64-TQFP	16 K	40 MIPs	Surface Mount	16-Bit	FLASH	A/D 16x10b/12b	Internal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

The

dsPIC33FJ64MC706A family of devices supports a variety of motor

control applications, such as brushless DC motors, single and 3-phase induction

Technical documentation and resources
