426-83-236-41-001101

Active

PRECI-DIP SA

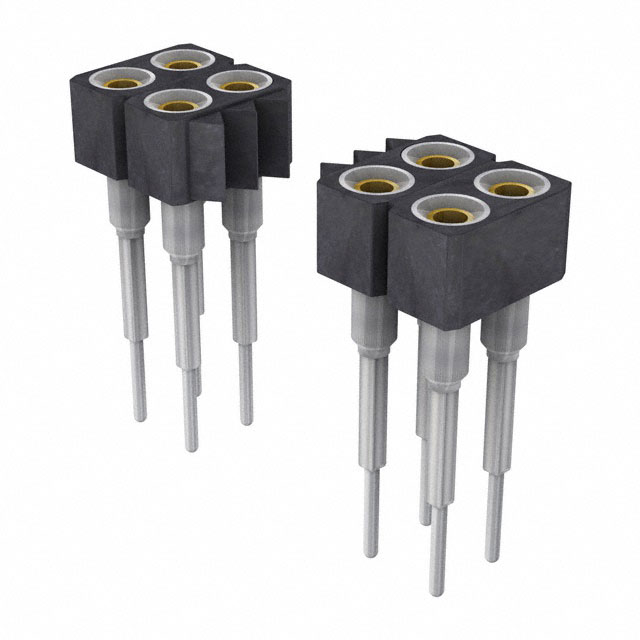

CONN SOCKET 36POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

426-83-236-41-001101

Active

PRECI-DIP SA

CONN SOCKET 36POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	426-83-236-41-001101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Wire Wrap

426-83 Series

Part	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Termination	Connector Type	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Material	Contact Finish - Post	Contact Shape	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Material	Number of Rows	Current Rating (Amps)	Fastening Type
PRECI-DIP SA 426-83-204-41-002101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	4	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	13.8 mm	0.543 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-220-41-001101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	20	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	10.8 mm	0.425 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-264-41-003101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	64	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	16.8 mm	0.661 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-254-41-003101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	54	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	16.8 mm	0.661 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-234-41-002101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	34	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	13.8 mm	0.543 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-236-41-001101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	36	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	10.8 mm	0.425 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-238-41-001101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	38	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	10.8 mm	0.425 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-242-41-001101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	42	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	10.8 mm	0.425 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-212-41-003101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	12	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	16.8 mm	0.661 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull
PRECI-DIP SA 426-83-214-41-003101	Gold	2.54 mm	0.1 in	-55 °C	125 °C	Through Hole	Black	Wire Wrap	Socket	All	Female Socket	29.5 Áin	0.75 Ám	14	Beryllium Copper	Tin	Circular	3.2 mm	0.126 in	UL94 V-0	0.1 in	2.54 mm	16.8 mm	0.661 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2	3 A	Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.20

Description

General part information

426-83 Series

36 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
