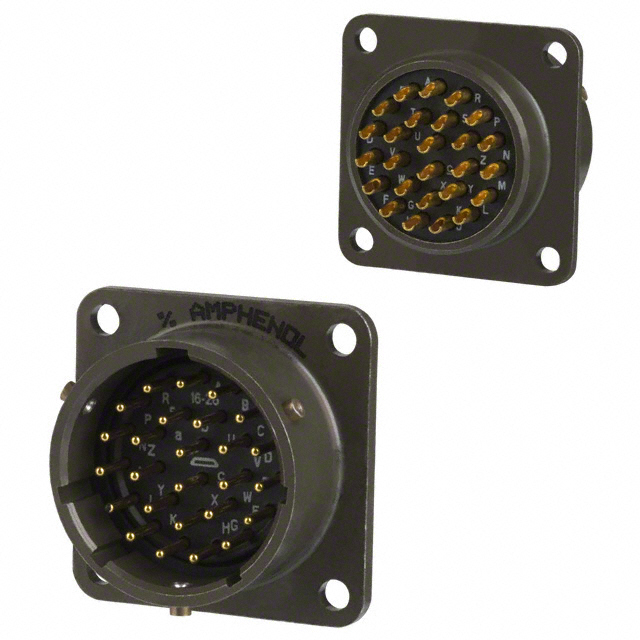

MS3112E16-26P

Unknown

Amphenol Industrial Operations

CONN RCPT MALE 26P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3112E16-26P

Unknown

Amphenol Industrial Operations

CONN RCPT MALE 26P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E16-26P

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	26
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	26
Shell Size - Insert [Min]	16
Shielding	Unshielded

MS3112E16 Series

Part	Fastening Type	Contact Material	Insert Material	Orientation	Connector Type	Shell Material	Primary Material	Applications	Grade	Qualification	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Mounting Feature	Color	Contact Finish - Mating	Ingress Protection	Number of Positions	Voltage Rating	Current Rating (Amps)
Amphenol Industrial Operations MS3112E16-26P	Bayonet Lock	Copper Alloy	Neoprene	N	Male Pins Receptacle	Aluminum	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	MIL-DTL-26482 Series I	Unshielded	-55 °C	125 °C	16	26	Olive Drab Chromate over Cadmium	Flange	Olive Drab	Gold	Environment Resistant	26
Amphenol Industrial Operations MS3112E16-8S	Bayonet Lock	Copper Alloy	Neoprene	N	Receptacle Female Sockets	Aluminum	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	MIL-DTL-26482 Series I	Unshielded	-55 °C	125 °C			Olive Drab Chromate over Cadmium	Flange	Olive Drab	Gold	Environment Resistant	8
Amphenol Industrial Operations MS3112E16-23S	Bayonet Lock	Copper Alloy	Neoprene	N	Receptacle Female Sockets	Aluminum	Metal	Aerospace Industrial Instrumentation Mass Transit Military	Military	MIL-DTL-26482 Series I	Unshielded	-55 °C	125 °C	16	23	Olive Drab Chromate over Cadmium	Flange	Olive Drab	Gold	Environment Resistant	23	600 VAC	7.5 A 13 A
Amphenol Industrial Operations MS3112E16-26SY	Bayonet Lock	Copper Alloy	Neoprene	Y	Receptacle Female Sockets	Aluminum	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	MIL-DTL-26482 Series I	Unshielded	-55 °C	125 °C	16	26	Olive Drab Chromate over Cadmium	Flange	Olive Drab	Gold	Environment Resistant	26
Amphenol Industrial Operations MS3112E16-26SW	Bayonet Lock	Copper Alloy	Neoprene	W	Receptacle Female Sockets	Aluminum	Metal	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Military	MIL-DTL-26482 Series I	Unshielded	-55 °C	125 °C	16	26	Olive Drab Chromate over Cadmium	Flange	Olive Drab	Gold	Environment Resistant	26
Amphenol Industrial Operations MS3112E16-8PY
Amphenol Industrial Operations MS3112E16-26PY
Amphenol Industrial Operations MS3112E16-26PZ

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.39
		1	$ 68.24
		1	$ 85.01
		10	$ 58.00
		25	$ 54.37
		50	$ 51.78
		100	$ 49.31

Description

General part information

MS3112E16 Series

26 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources
