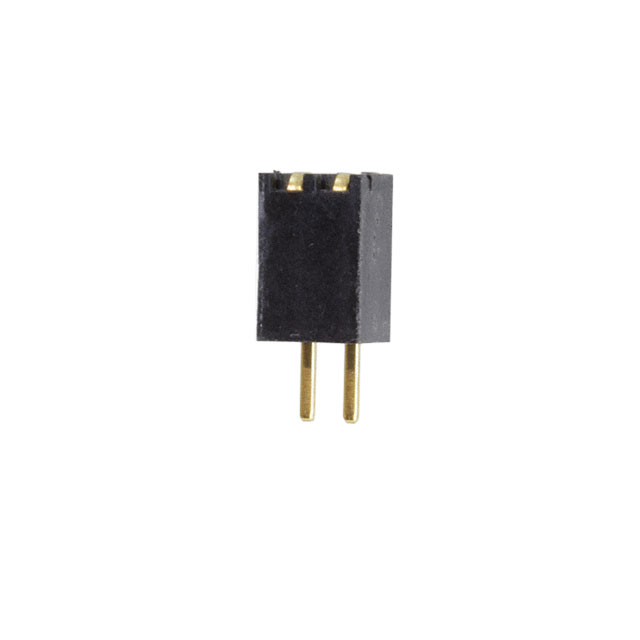

BSW-102-04-G-S

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Bottom Entry Socket Strip Datasheet +1

BSW-102-04-G-S

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD PCB

Deep-Dive with AI

Documents.100" Bottom Entry Socket Strip Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-102-04-G-S

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-125 Series

Board to Board & Mezzanine Connectors .100" Bottom Entry Socket Strip

Part	Connector Type	Contact Material	Material Flammability Rating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Number of Rows	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-125-04-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	50	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-119-24-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	38	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-102-04-G-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	20 µin	0.51 µm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	2	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-126-24-L-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	2	52	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-102-04-T-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	105 ░C	Square			Bottom Mount Through Hole	Solder	Black		All	2	4	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-133-04-G-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	20 µin	0.51 µm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-133-24-S-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-125-24-S-S	Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	1		Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in
Samtec Inc. BSW-119-24-S-D	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin	0.165 in	4.19 mm	Push-Pull	-55 °C	125 °C	Square	30 Áin	0.76 Ám	Bottom Mount Through Hole	Solder	Black	Gold	All	2	38	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket	2.54 mm	0.1 in	0.35 in	8.89 mm
Samtec Inc. BSW-133-04-L-S	Breakaway Receptacle	Phosphor Bronze	UL94 V-0	Tin			Push-Pull	-55 °C	125 °C	Square	10 çin	0.25 çm	Bottom Mount Through Hole	Solder	Black	Gold	All	1	33	Polyethylene Terephthalate (PET) Glass Filled	0.1 in	2.54 mm	Female Socket			0.35 in	8.89 mm	4.32 mm	0.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.82
		10	$ 1.39
		100	$ 1.07
		500	$ 0.90
		1000	$ 0.83
		5000	$ 0.71
		10000	$ 0.67
