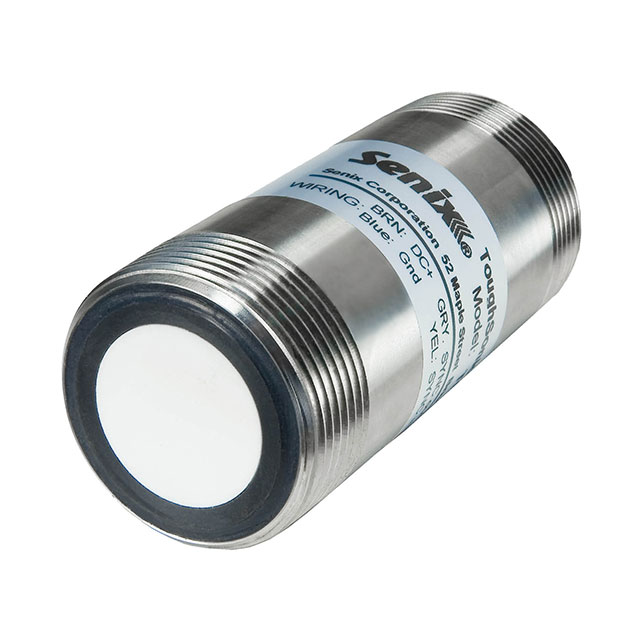

TSPC-15S-485

Active

Senix Corporation

TOUGHSONIC 30 1.5" NPT RS-485

Search across all available documentation for this part.

Active

Senix Corporation

TOUGHSONIC 30 1.5" NPT RS-485

Technical Specifications

Parameters and characteristics for this part

Specification	TSPC-15S-485

Indicator [custom]	No Indicator
Ingress Protection	IP68
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded
Sensing Distance	9.1 m
Sensing Distance	30 ft
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Material - Body	Shielding	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Indicator [custom]	Sensing Distance	Sensing Distance	Output Type	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type
Senix Corporation TSPC-15S-485	IP68	Stainless Steel	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	9.1 m	30 ft	Analog Current and Voltage NPN/PNP	Cylinder Threaded	30 VDC	10 VDC	Ultrasonic
Senix Corporation TSPC-15S-232	IP68	Stainless Steel	Unshielded	Cable Leads	-40 °C	70 °C	No Indicator	9.1 m	30 ft	Analog Current and Voltage NPN/PNP	Cylinder Threaded	30 VDC	10 VDC	Ultrasonic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TOUGHSONIC 30 1.5" NPT RS-485

Technical documentation and resources
