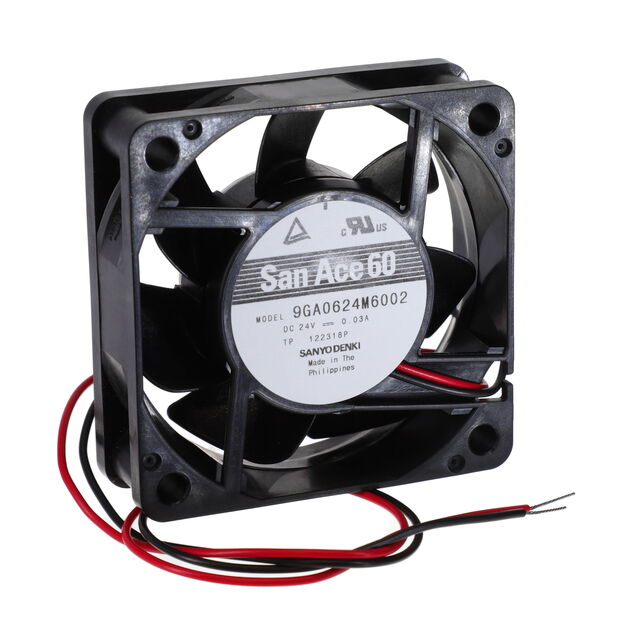

9GA0624M6002

Active

Sanyo Denki America Inc.

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing

9GA0624M6002

Active

Sanyo Denki America Inc.

FAN AXIAL 60X20MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0624M6002

Air Flow	0.336 mł/min
Air Flow	12 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	30 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	18 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	720 mW
RPM	2700 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.08 in H2O
Static Pressure	19.9 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	0.156 lb
Weight	70.76 g
Width [y]	20 mm

9GA0624 Series

Part	Voltage Range [Min]	Voltage Range [Max]	RPM	Fan Type	Approval Agency	Width [y]	Bearing Type	Material - Blade	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Air Flow	Air Flow	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Current Rating (Amps)	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight	Material - Frame	Lifetime @ Temp.	Features	Operating Temperature [Max]	Width [x]
Sanyo Denki America Inc. 9GA0624M6002	21.6 VDC	26.4 VDC	2700 RPM	Tubeaxial	CSA TUV UL	20 mm	Ball	Plastic	60 mm	60 mm	24 VDC	0.336 mł/min	12 CFM	18 dB(A)	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	30 mA	0.08 in H2O	19.9 Pa	720 mW	0.156 lb	70.76 g	Plastic
Sanyo Denki America Inc. 9GA0624J101	21.6 VDC	25.2 VDC	17500 RPM	Tubeaxial	CSA TUV UL	38 mm	Ball	Plastic	60 mm	60 mm	24 VDC	1.74 mł/min	62 CFM	63 dB	-20 °C	60 °C	-20 C	60 °C	3 Wire Leads	750 mA	3.3 in H2O	822 Pa	18 W	0.287 lb	130.18 g	Plastic	Varies Based on Temperature	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0624H6002	21.6 VDC	26.4 VDC	4100 RPM	Tubeaxial	CSA TUV UL	20 mm	Ball	Plastic	60 mm	60 mm	24 VDC	0.515 mł/min	18.4 CFM	30 dB(A)	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	40 mA	0.18 in H2O	44.8 Pa		0.156 lb	70.76 g	Plastic
Sanyo Denki America Inc. 9GA0624P1K03	21.6 VDC	26.4 VDC	14800 RPM	Tubeaxial	CSA TUV UL	38 mm	Ball	Plastic	60 mm	60 mm	24 VDC	1.48 mł/min	53 CFM	59 dB(A)	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads	0.5 A	2.4 in H2O	597.8 Pa	12 W	0.287 lb	130.18 g	Plastic	Varies Based on Temperature	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0624P1K031	21.6 VDC	26.4 VDC	14800 RPM	Tubeaxial	CSA TUV UL	38 mm	Ball	Plastic	60 mm	60 mm	24 VDC	1.48 mł/min	53 CFM	59 dB(A)	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads	0.5 A	2.4 in H2O	597.8 Pa	12 W	0.287 lb	130.18 g	Plastic	Varies Based on Temperature	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0624G6002	21.6 VDC	26.4 VDC	6850 RPM	Tubeaxial	CSA TUV UL	20 mm	Ball	Plastic	60 mm	60 mm	24 VDC	0.871 mł/min	31.1 CFM	43 dB	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	120 mA	0.5 in H2O	124.5 Pa	2.88 W	0.156 lb	70.76 g	Plastic	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624H6001	21.6 VDC	26.4 VDC	4100 RPM	Tubeaxial	CSA TUV UL	20 mm	Ball	Plastic	60 mm	60 mm	24 VDC	0.515 mł/min	18.4 CFM	29 dB(A)	-10 °C		-10 °C	70 °C	3 Wire Leads	40 mA	0.18 in H2O	44.8 Pa		0.154 lb	69.85 g	Plastic		Speed Sensor (Tach)	70 °C
Sanyo Denki America Inc. 9GA0624J1011	21.6 VDC	25.2 VDC	17500 RPM	Tubeaxial	CSA TUV UL	38 mm	Ball	Plastic	60 mm	60 mm	24 VDC	1.74 mł/min	62 CFM	63 dB	-20 °C	60 °C	-20 C	60 °C	3 Wire Leads	750 mA	3.3 in H2O	822 Pa	18 W	0.287 lb	130.18 g	Plastic	Varies Based on Temperature	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0624G702			5900 RPM	Tubeaxial	CSA UL		Ball	Plastic	60 mm	60 mm	24 VDC	0.672 mł/min	24 CFM	38 dB(A)	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads		0.32 in H2O	79.7 Pa	1.92 W	0.111 lb	50.35 g	Plastic	Varies Based on Temperature			15 mm
Sanyo Denki America Inc. 9GA0624J1021	21.6 VDC	25.2 VDC	17500 RPM	Tubeaxial	CSA TUV UL	38 mm	Ball	Plastic	60 mm	60 mm	24 VDC	1.74 mł/min	62 CFM	63 dB	-20 °C	60 °C	-20 C	60 °C	2 Wire Leads	750 mA	3.3 in H2O	822 Pa	18 W	0.287 lb	130.18 g	Plastic	Varies Based on Temperature

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.32
		10	$ 18.56
		25	$ 17.85
		50	$ 16.68
		100	$ 15.39
		300	$ 15.15
		500	$ 15.03

Description

General part information

9GA0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 12.0 CFM (0.336m³/min) 2 Wire Leads
