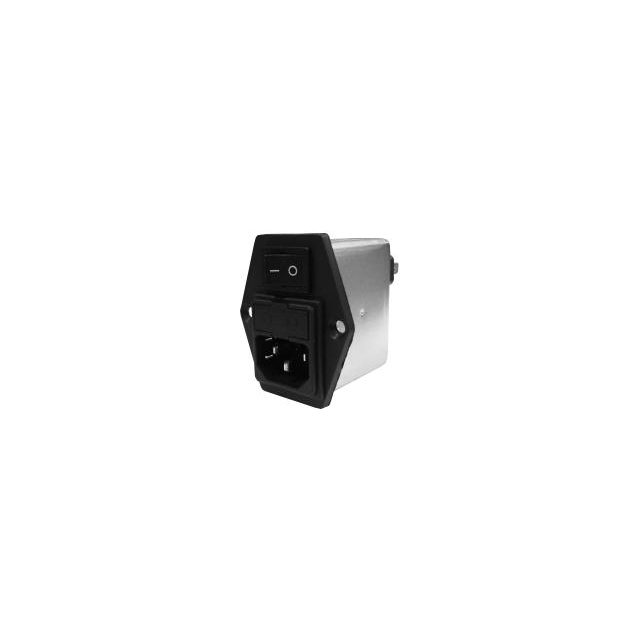

RP188HSN-6-1-QD
ActiveAstrodyne TDI
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP188HSN-6-1-QD
ActiveAstrodyne TDI
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP188HSN-6-1-QD |
|---|---|
| Applications | General Purpose |
| Approval Agency | CE, cURus, CSA, SEMKO |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Termination Style | Quick Connect, IEC 320-C14 |
| Voltage - Rated AC | 250 V |
RP188 Series
| Part | Configuration | Termination Style | Filter Type | Operating Temperature [custom] | Mounting Type | Current | Frequency - Operating [Max] | Frequency - Operating [Min] | Approval Agency | Voltage - Rated AC | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 6 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 10 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 10 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 6 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 3 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 10 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Astrodyne TDI | Single Stage | IEC 320-C14 Quick Connect | Single Phase | -25 °C 100 °C | Chassis Mount | 6 A | 60 Hz | 50 Hz | CE CSA cURus SEMKO | 250 V | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.20 | |
Description
General part information
RP188 Series
Single Phase EMC/EMI Line Filter 6 A 250V 50/60Hz Single Stage IEC 320-C14, Quick Connect
