M4723 SL005

Active

ALPHA WIRE

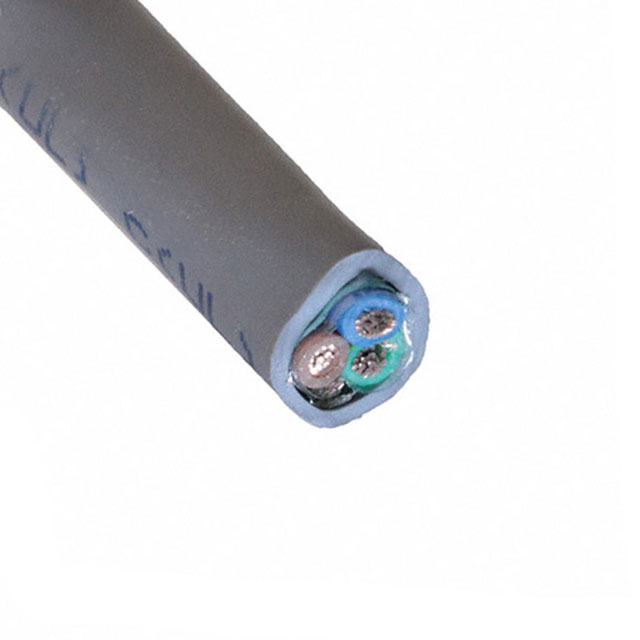

CABLE 3COND 16AWG SLATE SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 16AWG SLATE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4723 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.267 in
Jacket (Insulation) Diameter [diameter]	6.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	16 AWG

Part	Length [x]	Length [x]	Number of Conductors	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Cable Type	Conductor Insulation	Conductor Material	Shield Material	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Jacket (Insulation) Material	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]
ALPHA WIRE M4723 SL005	30.5 m	100 ft	3	Drain Wire Rip Cord	-20 C	80 C	100 %	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Copper Tinned	Aluminum	UL Style 2464	16 AWG	0.267 in	6.78 mm	Foil	Poly-Vinyl Chloride (PVC)	Slate	300 V	19	0.0117 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 2.21

General part information

3 Conductor Multi-Conductor Cable Slate 16 AWG Foil 100.0' (30.5m)
