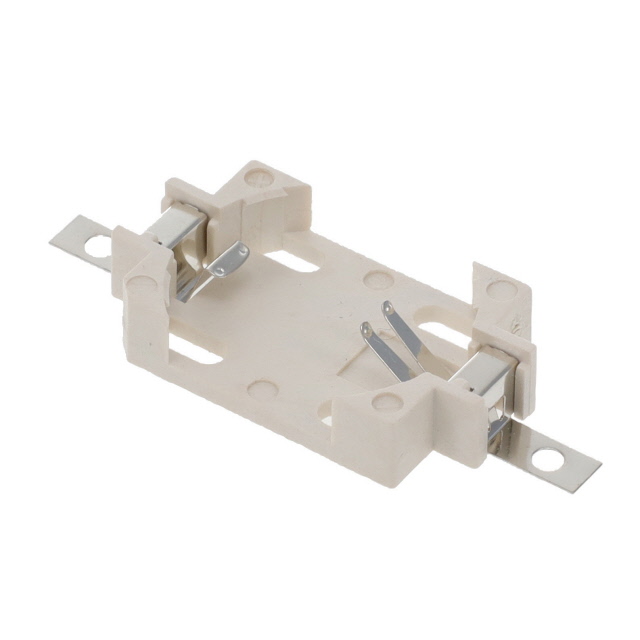

BH-49E-5
ActiveAdam Tech
BATT HOLDER COIN 20MM 1 CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BH-49E-5
ActiveAdam Tech
BATT HOLDER COIN 20MM 1 CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BH-49E-5 |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2032 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 5.5 mm |
| Height Above Board | 0.217 in |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Style | Holder (Open) |
| Termination Style | Surface Mount (SMD,SMT) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.68 | |
| 10 | $ 0.56 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.39 | |||
| 2500 | $ 0.39 | |||
Description
General part information
BH-49E Series
Battery Holder (Open) Coin, 20.0mm 1 Cell Surface Mount (SMD,SMT)
