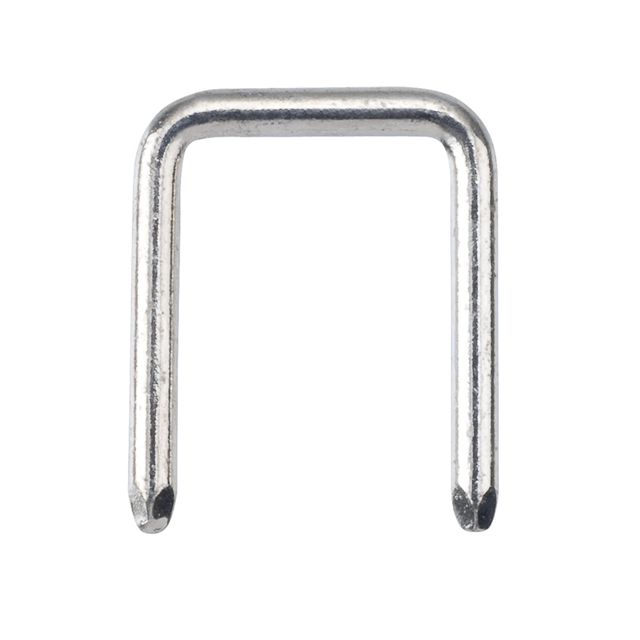

D3081-46

Active

Harwin Inc.

SHORTING LINK 1MM

Search across all available documentation for this part.

Active

Harwin Inc.

SHORTING LINK 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	D3081-46

Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Current Rating (Amps)	10 A
Gender	Male Pins
Height [z]	0.359 "
Height [z]	9.13 mm
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Type	Non-Insulated

Part	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Type	Contact Finish	Gender	Height [z]	Height [z]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. D3081-46	1 x 2	2	10 A	Non-Insulated	Tin	Male Pins	0.359 "	9.13 mm	2.54 µm	100 µin
Harwin Inc. D3081-05	1 x 2	2	10 A	Non-Insulated	Gold	Male Pins	0.359 "	9.13 mm			Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 x 2) Position Shunt Connector Non-Insulated Tin
