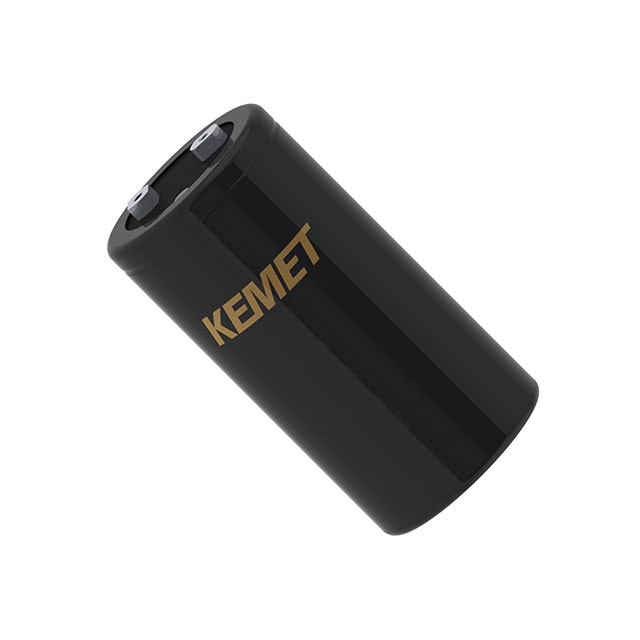

ALS71H334QS063

Active

KEMET

CAP ALUM 330000UF 20% 63V SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALS71H334QS063

Active

KEMET

CAP ALUM 330000UF 20% 63V SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS71H334QS063

Applications	General Purpose
Capacitance	330000 µF
ESR (Equivalent Series Resistance)	5 mOhm
Height - Seated (Max) [Max] [z]	196 mm
Height - Seated (Max) [Max] [z]	7.717 in
Impedance	7 mOhms
Lead Spacing	31.8 mm
Lead Spacing	1.252 in
Lifetime @ Temp.	20000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	43.3 A
Ripple Current @ Low Frequency	41.7 A
Size / Dimension [diameter]	3.543 in
Size / Dimension [diameter]	90 mm
Tolerance	20 %
Voltage - Rated	63 V

ALS71H Series

...

Part	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Capacitance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Applications	Polarization	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALS71H624QM025	25 VDC	133 mm	5.236 in	20000 Hrs	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount	20 %	85 °C	-40 °C	8 mOhms	620000 µF	36.9 A	36.1 A	General Purpose	Polar	31.8 mm	1.252 in	7 mOhm
KEMET ALS71H434NW040	40 V	171 mm	6.732 in	20000 Hrs	Radial Can - Screw Terminals	3.031 "	77 mm	Chassis Mount	20 %	85 °C	-40 °C	8 mOhms	430000 µF	33.9 A	33 A	General Purpose	Polar	31.8 mm	1.252 in	7 mOhm
KEMET ALS71H622NW550	550 V	171 mm	6.732 in	20000 Hrs	Radial Can - Screw Terminals	3.031 "	77 mm	Chassis Mount	20 %	85 °C	-40 °C	66 mOhms	6200 µF	24 A	17.6 A	General Purpose	Polar	31.8 mm	1.252 in	76 mOhm
KEMET ALS71H474QP040	40 V	148 mm	5.827 in	20000 Hrs	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount	20 %	85 °C	-40 °C	8 mOhms	0.47 F	39 A	37.9 A	General Purpose	Polar	31.8 mm	1.252 in	6 mOhm
KEMET ALS71H334QS063	63 V	196 mm	7.717 in	20000 Hrs	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount	20 %	85 °C	-40 °C	7 mOhms	330000 µF	43.3 A	41.7 A	General Purpose	Polar	31.8 mm	1.252 in	5 mOhm
KEMET ALS71H332DF200	200 V			11000 Hrs	Radial Can - Screw Terminals	1.417 in	36 mm	Chassis Mount	20 %	85 °C	-40 °C	61 mOhms	3.3 mF	11.7 A	7.1 A	General Purpose	Polar	12.8 mm	0.504 in		107 mm	4.213 in
KEMET ALS71H103QW500	500 V	171 mm	6.732 in	20000 Hrs	Radial Can - Screw Terminals	3.543 in	90 mm	Chassis Mount	20 %	85 °C	-40 °C	23 mOhms	10000 µF	32.4 A	23.5 A	General Purpose	Polar	31.8 mm	1.252 in	29 mOhm
KEMET ALS71H223NP200	200 V	148 mm	5.827 in	20000 Hrs	Radial Can - Screw Terminals	3.031 "	77 mm	Chassis Mount	20 %	85 °C	-40 °C	16 mOhms	22000 µF	26.1 A	21.6 A	General Purpose	Polar	31.8 mm	1.252 in	20 mOhm
KEMET ALS71H912LM250	250 V	133 mm	5.236 in	19000 Hrs	Radial Can - Screw Terminals	2.5 in	2.5 "	Chassis Mount	20 %	85 °C	-40 °C	22 mOhms	9100 µF	23.5 A	16.2 A	General Purpose	Polar	28.5 mm	1.122 in	31 mOhm
KEMET ALS71H474NF025	25 VDC			20000 Hrs	Radial Can - Screw Terminals	3.031 "	77 mm	Chassis Mount	20 %	85 °C	-40 °C	10 mOhms	0.47 F	28.6 A	28 A	General Purpose	Polar	31.8 mm	1.252 in	9 mOhm	107 mm	4.213 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 70.44

Description

General part information

ALS71H Series

330000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5mOhm @ 100Hz 20000 Hrs @ 85°C
