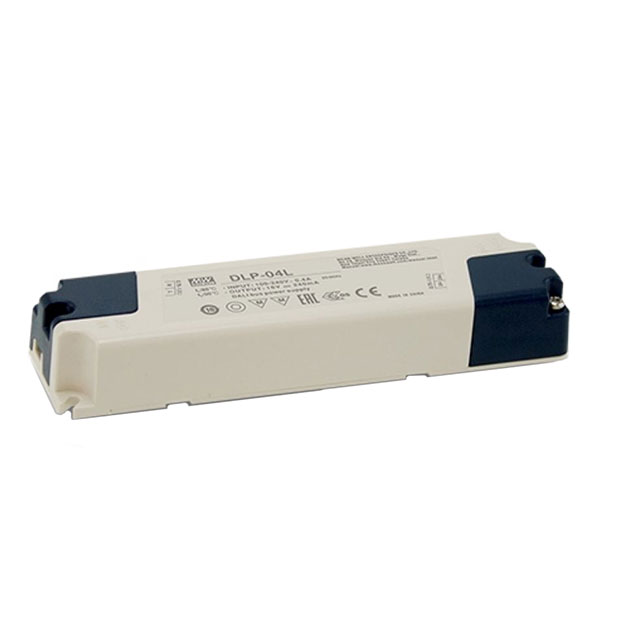

DLP-04L

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 16V 3.8W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 16V 3.8W

Technical Specifications

Parameters and characteristics for this part

Specification	DLP-04L

Applications	ITE (Commercial)
Approval Agency	ENEC, EAC, CE
Current - Output 1 [custom]	240 mA
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	3.8 W
Size / Dimension [x]	5.71 in
Size / Dimension [x]	145 mm
Size / Dimension [y]	1.5 in
Size / Dimension [y]	38 mm
Size / Dimension [z]	0.87 in
Size / Dimension [z]	22 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	16 V

Part	Power (Watts)	Features	Number of Outputs	Type	Current - Output 1 [custom]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Approval Agency	Voltage - Isolation	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Input Type	DC Voltage - Input (Min) [Min]
MEAN WELL USA Inc. DLP-04L	3.8 W	Adjustable Output Universal Input	1	Enclosed	240 mA	ITE (Commercial)	1.5 in	5.71 in	0.87 in	145 mm	38 mm	22 mm	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	60 °C	-20 °C	16 V	CE EAC ENEC	3000 V
MEAN WELL USA Inc. DLP-04R	3.8 W	Adjustable Output Universal Input	1			ITE (Commercial)										60 °C	-20 °C	16 V	CE EAC ENEC	3000 V	90 VAC	264 VAC	370 V	240 mA	AC or DC	120 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 16V 90 ~ 264 VAC, 120 ~ 370 VDC Input
