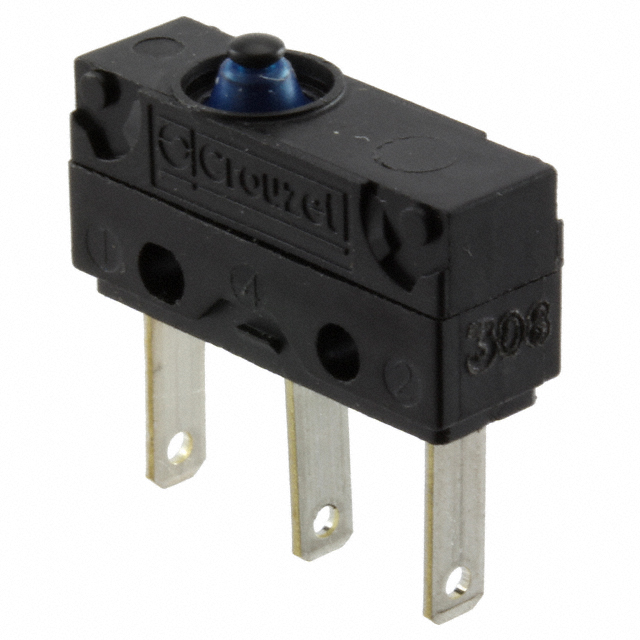

83183002
ActiveCrouzet
SWITCH SNAP ACTION SPDT 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
83183002
ActiveCrouzet
SWITCH SNAP ACTION SPDT 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 83183002 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 2000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 255 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.6 mm |
| Overtravel | 0.025 " |
| Release Force | 82 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4000 | $ 5.96 | |
Description
General part information
831830 Series
Switch SPDT Chassis Mount
