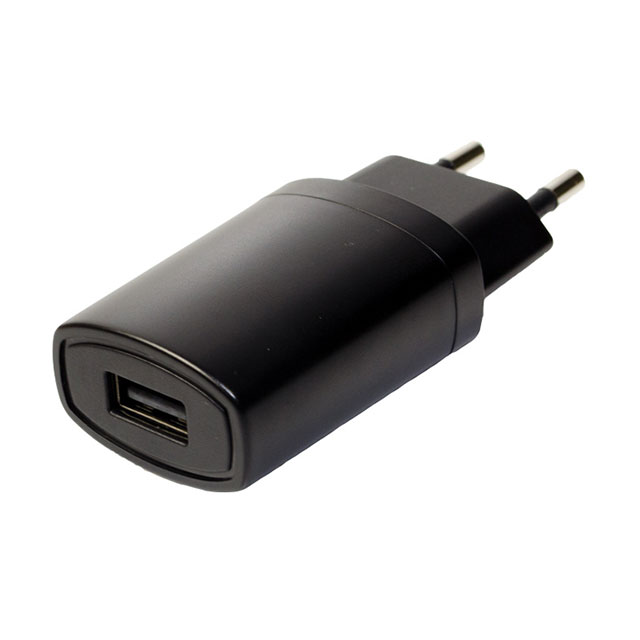

SWI3-5-E-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 3W

Deep-Dive with AI

Search across all available documentation for this part.

SWI3-5-E-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 5V 3W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SWI3-5-E-I38

Applications	ITE (Commercial)
Approval Agency	CB Scheme, IEC
Current - Output (Max) [Max]	600 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	3 W
Region Utilized	Europe
Size / Dimension [x]	22.8 mm
Size / Dimension [x]	0.9 "
Size / Dimension [y]	1.43 "
Size / Dimension [y]	36.3 mm
Size / Dimension [z]	65.6 mm
Size / Dimension [z]	2.58 "
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

SWI3-5 Series

Part	Current - Output (Max) [Max]	Input Connector	No Load Power Consumption [Max]	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Efficiency	Cord Length	Cord Length	Voltage - Output	Output Connector	Region Utilized	Approval Agency	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Input Type	Standard Number	Form	Polarization	Output Connector [x]	Output Connector [diameter]
CUI Inc. SWI3-5-E-ST	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI	1.5 m	59 in	5 V	Stripped Tinned Wire Leads	Europe	CB Scheme IEC	40 °C	2.95 "	29.5 mm	2.13 "	54 mm	1.16 "	75 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)
CUI Inc. SWI3-5-N-ST	600 mA	NEMA 1-15P	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	Level VI	1.5 m	59 in	5 V	Stripped Tinned Wire Leads	North America	CSA FCC PSE UL	40 °C	2.17 "	29.5 mm	2.13 "	54 mm	1.16 "	55.1 mm	Fixed Blade	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)
CUI Inc. SWI3-5-E-I38	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI			5 V		Europe	CB Scheme IEC	40 °C	2.58 "	36.3 mm	0.9 "	22.8 mm	1.43 "	65.6 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)
CUI Inc. SWI3-5-N-P6R	600 mA	NEMA 1-15P	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	Level VI	1.5 m	59 in	5 V	Barrel Plug R/A	North America	CSA FCC PSE UL	40 °C	1.49 in	29.5 mm	2.13 "	54 mm	1.16 "	37.9 mm	Fixed Blade	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.5 mm 5.5 mm
CUI Inc. SWI3-5-N-P5	600 mA	NEMA 1-15P	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	Level VI	1.5 m	59 in	5 V	Barrel Plug	North America	CSA FCC PSE UL	40 °C	1.49 in	54 mm	1.16 in	29.5 mm	2.13 in	37.9 mm	Fixed Blade	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.1 mm 5.5 mm
CUI Inc. SWI3-5-N-P6	600 mA	NEMA 1-15P	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	Level VI	1.5 m	59 in	5 V	Barrel Plug	North America	CSA FCC PSE UL	40 °C	1.49 in	29.5 mm	2.13 "	54 mm	1.16 "	37.9 mm	Fixed Blade	60950-1 62368-1 C22.2 No. 60950-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.5 mm 5.5 mm
CUI Inc. SWI3-5-E-P6R	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI	1.5 m	59 in	5 V	Barrel Plug R/A	Europe	CB Scheme IEC	40 °C	2.2 in	29.5 mm	2.13 "	54 mm	1.16 "	56 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.5 mm 5.5 mm
CUI Inc. SWI3-5-E-P5	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI	1.5 m	59 in	5 V	Barrel Plug	Europe	CB Scheme IEC	40 °C	2.2 in	29.5 mm	2.13 "	54 mm	1.16 "	56 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.1 mm 5.5 mm
CUI Inc. SWI3-5-E-MUB	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI	1.5 m	59 in	5 V	USB Micro	Europe	CB Scheme IEC	40 °C	2.2 in	29.5 mm	2.13 "	54 mm	1.16 "	56 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)
CUI Inc. SWI3-5-E-P6	600 mA	CEE 7/16	75 mW	ITE (Commercial)	90 VAC	264 VAC	3 W	CoC Tier 2 Level VI	1.5 m	59 in	5 V	Barrel Plug	Europe	CB Scheme IEC	40 °C	2.2 in	29.5 mm	2.13 "	54 mm	1.16 "	56 mm	Fixed Blade	60950-1 62368-1	Wall Mount (Class II)	Positive Center	9.5 mm	2.5 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.39
		5	$ 4.17
		10	$ 4.06
		25	$ 3.86

Description

General part information

SWI3-5 Series

5V 3 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

No documents available
