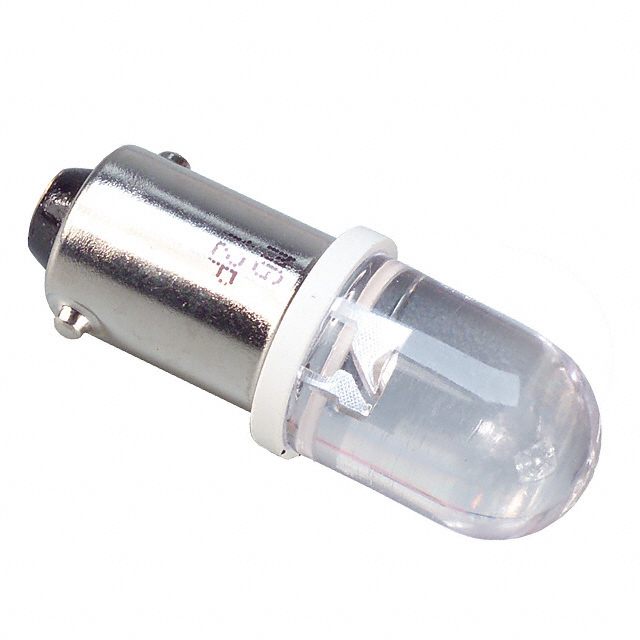

SSP-D29B9SIC-12V

Active

Lumex Opto/Components Inc.

LED DOME 10MM BA9S 636NM SUP RED

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED DOME 10MM BA9S 636NM SUP RED

Technical Specifications

Parameters and characteristics for this part

Specification	SSP-D29B9SIC-12V

Applications	Indicator Lights, Incandescent Replacements
Base Type	Miniature Bayonet (BA9S)
Can Replace Lamps	Multiple Miniature Bayonet Lamps
Color	Red
Configuration	Single
Millicandela Rating	2500 mcd
Size / Dimension [diameter]	0.394 in
Size / Dimension [diameter]	10 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.181 "
Voltage - Forward (Vf) (Typ)	12 V
Wavelength	636 nm

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Can Replace Lamps	Applications	Base Type	Color	Wavelength	Configuration
Lumex Opto/Components Inc. SSP-D29B9SIC-12V	12 V	2500 mcd	30 mm	0.394 in	1.181 "	10 mm	Multiple Miniature Bayonet Lamps	Incandescent Replacements Indicator Lights	Miniature Bayonet (BA9S)	Red	636 nm	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lamp Replacement Red Miniature Bayonet (BA9S) 12V 0.394" Dia x 1.181" H (10.00mm x 30.00mm)
