MP6550GG-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

H-BRIDGE MOTOR DRIVER 1.8V TO 22V 12-PIN QFN T/R

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

H-BRIDGE MOTOR DRIVER 1.8V TO 22V 12-PIN QFN T/R

Technical Specifications

Parameters and characteristics for this part

Specification	MP6550GG-Z

Applications	General Purpose
Current - Output	2 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushed DC
Motor Type - Stepper	Unipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (4)

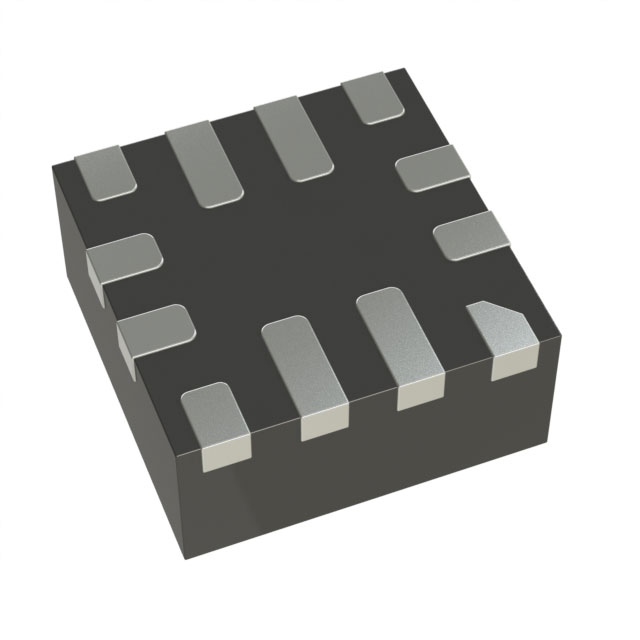

Package / Case	12-VFQFN
Supplier Device Package	12-QFN (2x2)
Technology	Power MOSFET
Voltage - Load [Max]	22 V
Voltage - Load [Min]	1.8 V
Voltage - Supply [Max]	22 V
Voltage - Supply [Min]	1.8 V

Part	Package / Case	Output Configuration	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Motor Type - AC, DC	Supplier Device Package	Mounting Type	Function	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output	Motor Type - Stepper	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]
MONOLITHIC POWER SYSTEMS (MPS) MP6550GG-Z	12-VFQFN	Half Bridge (4)	PWM	-40 °C	125 ¯C	General Purpose	Brushed DC	12-QFN (2x2)	Surface Mount	Driver - Fully Integrated Control and Power Stage	1.8 V	22 V	2 A	Unipolar	Power MOSFET	22 V	1.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

H-bridge motor driver in 12 pin QFN package

2A continuous driver current

240mohm MOSFET on-resistance (HS + LS)
