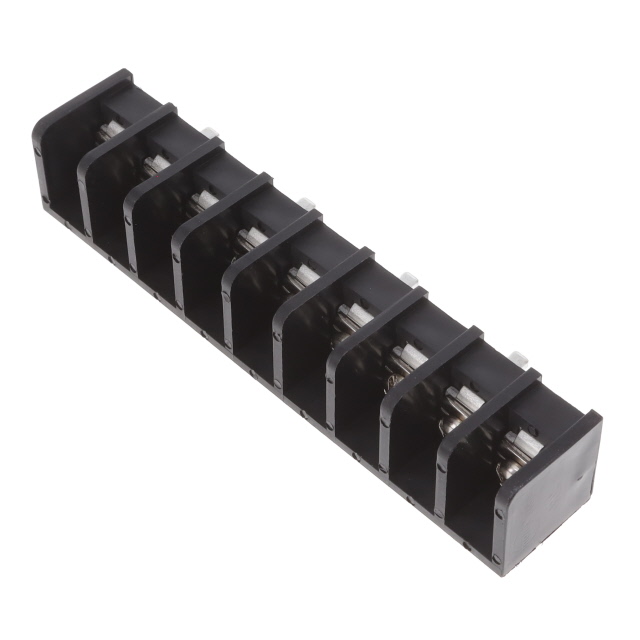

0389690009

Active

Molex

CONN BARRIER STRIP 9CIRC 0.5"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0389690009

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	50 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	1
Number of Wire Entries	9
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	12.7 mm
Pitch [x]	0.5 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	600 V
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	8 AWG

038969 Series

Part	Top Termination	Barrier Type	Number of Wire Entries	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Color	Material - Insulation	Mounting Type	Voltage Rating	Material Flammability Rating	Terminal Screw Finish	Current Rating (Amps)	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Bottom Termination	Terminal Screw Material	Number of Circuits
Molex 0389690009	Screws with Captive Plate	3 Wall (Tri)	9	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel
Molex 0389690005	Screws with Captive Plate	3 Wall (Tri)	5	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	5
Molex 0389690012	Screws with Captive Plate	3 Wall (Tri)	12	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	12
Molex 0389690010	Screws with Captive Plate	3 Wall (Tri)	10	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	10
Molex 0389690015	Screws with Captive Plate	3 Wall (Tri)	15	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	15
Molex 0389690006	Screws with Captive Plate	3 Wall (Tri)	6	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	6
Molex 0389690004	Screws with Captive Plate	3 Wall (Tri)	4	20 AWG	8 AWG	1	Black	Polybutylene Terephthalate (PBT)	Through Hole	600 V	UL94 V-0	Nickel	50 A	12.7 mm	0.5 in	-40 °C	120 °C	Barrier Block	PC Pin	Steel	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.65
		10	$ 3.67
		25	$ 3.49
		72	$ 3.17
		144	$ 3.15

Description

General part information

038969 Series

9 Circuit 0.500" (12.70mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
