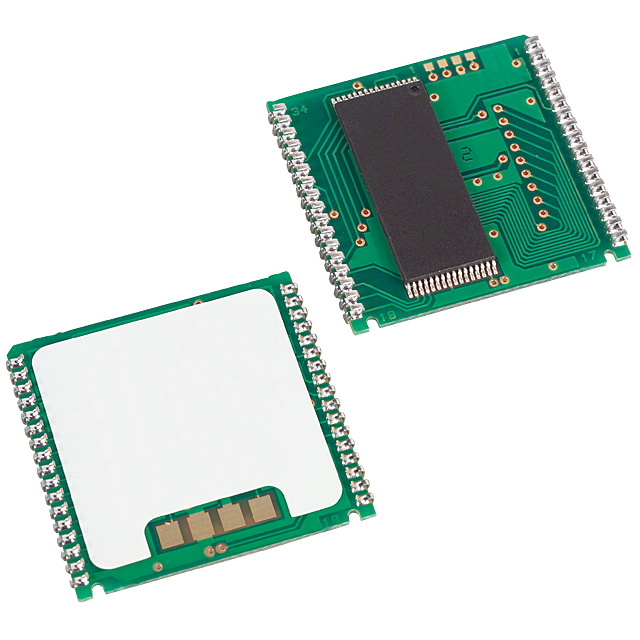

DS1230YP-70IND+

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 256KBIT PAR 34PWRCAP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS1230YP-70IND+

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 256KBIT PAR 34PWRCAP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS1230YP-70IND+

Access Time	70 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	32K x 8
Memory Size	32 KB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	34-PowerCap™ Module
Supplier Device Package	34-PowerCap Module
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

DS1230Y Series

Part	Supplier Device Package	Package / Case	Technology	Memory Format	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Access Time	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Mounting Type	Memory Organization	Write Cycle Time - Word, Page	Package / Case	Package / Case	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Analog Devices Inc./Maxim Integrated DS1230YP-70IND+	34-PowerCap Module	34-PowerCap™ Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	70 ns	32 KB	85 °C	-40 °C	Non-Volatile	Surface Mount	32K x 8
Analog Devices Inc./Maxim Integrated DS1230Y-120IND+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	120 ns	32 KB	85 °C	-40 °C	Non-Volatile	Through Hole	32K x 8	120 ns	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-70	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	70 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8		0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-100+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	100 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8		0.6 in	15.24 mm	100 ns	100 ns
Analog Devices Inc./Maxim Integrated DS1230YP-100	34-PowerCap Module	34-PowerCap™ Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	100 ns	32 KB	70 °C	0 °C	Non-Volatile	Surface Mount	32K x 8				100 ns	100 ns
Analog Devices Inc./Maxim Integrated DS1230Y-200+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	200 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8	200 ns	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-120+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	120 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8	120 ns	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-200IND+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	200 ns	32 KB	85 °C	-40 °C	Non-Volatile	Through Hole	32K x 8	200 ns	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-85+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	85 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8	85 ns	0.6 in	15.24 mm
Analog Devices Inc./Maxim Integrated DS1230Y-70+	28-EDIP	28-DIP Module	NVSRAM (Non-Volatile SRAM)	NVSRAM	Parallel	4.5 V	5.5 V	70 ns	32 KB	70 °C	0 °C	Non-Volatile	Through Hole	32K x 8		0.6 in	15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 25.93
		10	$ 25.10

Description

General part information

DS1230Y Series

NVSRAM (Non-Volatile SRAM) Memory IC 256Kbit Parallel 70 ns 34-PowerCap Module
