PA-DSO-1803Z-D420-18/2

Active

Logical Systems Inc.

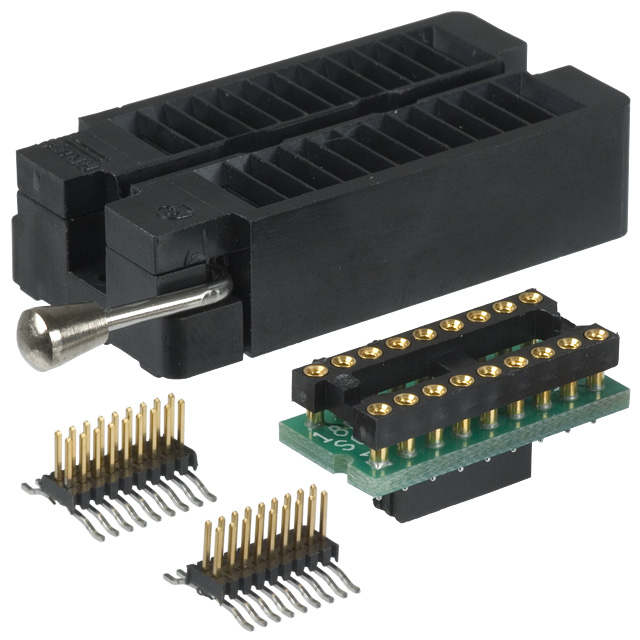

ADAPTER 18 ZIF BD W/18SO PLUGS

Search across all available documentation for this part.

Active

Logical Systems Inc.

ADAPTER 18 ZIF BD W/18SO PLUGS

Technical Specifications

Parameters and characteristics for this part

Specification	PA-DSO-1803Z-D420-18/2

Module/Board Type	ZIF Socket
Utilized IC / Part	CE623-CE625, 08, PIC16C52, Z8E000, HV540, F84(A), 16, 71, 620(A), 28, 558, Z86C(E)(L)02-04, 54(A)(C), F83, 06, 554, 61, 621, 710-717, 58A(B), 56(A)

Part	Utilized IC / Part	Module/Board Type
Logical Systems Inc. PA-DSO-1803Z-D420-18/2	06 08 16 28 54(A)(C) 554 558 56(A) 58A(B) 61 620(A) 621 71 710-717 CE623-CE625 F83 F84(A) HV540 PIC16C52 Z86C(E)(L)02-04 Z8E000	ZIF Socket
Logical Systems Inc. PA-DSO-1403-D250-14/2	PIC16C505	Socket Module - DIP
Logical Systems Inc. PA-DSO-2806Z		ZIF Socket
Logical Systems Inc. PA-DSO-2003		Socket Module - DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.54

General part information

PIC16C52,54(A)(C),56(A),58A(B),61,554,558,621,620(A),CE623-CE625,71,710-717,F83,F84(A),HV540, Z86C(E)(L)02-04,06,08,16,28,Z8E000 - ZIF Socket
