SS-7488S-BN-PG3-BA-A458

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

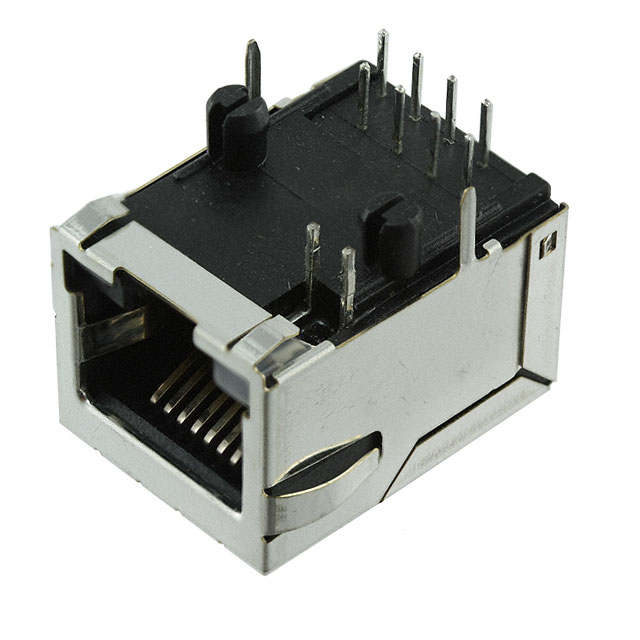

SS-7488S-BN-PG3-BA-A458

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-7488S-BN-PG3-BA-A458

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Red, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

SS-7488 Series

Part	LED Color	Housing Material	Orientation	Number of Rows	Contact Material	Termination	Connector Type	Number of Ports	Contact Finish	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	Shielding	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Ratings
BEL MAGNETIC SOLUTIONS SS-7488S-BN-PG3-BA-A458	Green Red	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	1	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole
BEL MAGNETIC SOLUTIONS SS-748804-GY-NF	Green Yellow	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	4	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Unshielded	0.76 Ám	30 Áin	Through Hole	Board Guide
BEL MAGNETIC SOLUTIONS SS-7488S-GG-PG4-BA	Green - Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	1	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole
BEL MAGNETIC SOLUTIONS SS-748802SC5-YG-PG4-BZ	Yellow - Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	2	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole	Board Guide	Cat5
BEL MAGNETIC SOLUTIONS SS-7488S-RG-PG4-BA	Green Red	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	1	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole
BEL MAGNETIC SOLUTIONS SS-7488SC5-YG-PG4-BA-50	Yellow - Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	1	Gold	8p8c (RJ45 Ethernet)			Down	Shielded EMI Finger	1.27 µm	50 µin	Through Hole		Cat5
BEL MAGNETIC SOLUTIONS SS-748804S-YG-PG4-BZ	Yellow - Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	4	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole	Board Guide
BEL MAGNETIC SOLUTIONS SS-7488SC5-GG-PG4-BA	Green - Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	1	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole		Cat5
BEL MAGNETIC SOLUTIONS SS-748804SFR1-BB-PG3-BZ	Red Green	Thermoplastic	90 °	1	Copper Alloy	Solder	Jack	4	Gold	8p8c (RJ45 Ethernet)	85 °C	-40 °C	Down	Shielded EMI Finger	0.76 Ám	30 Áin	Through Hole	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SS-7488 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
