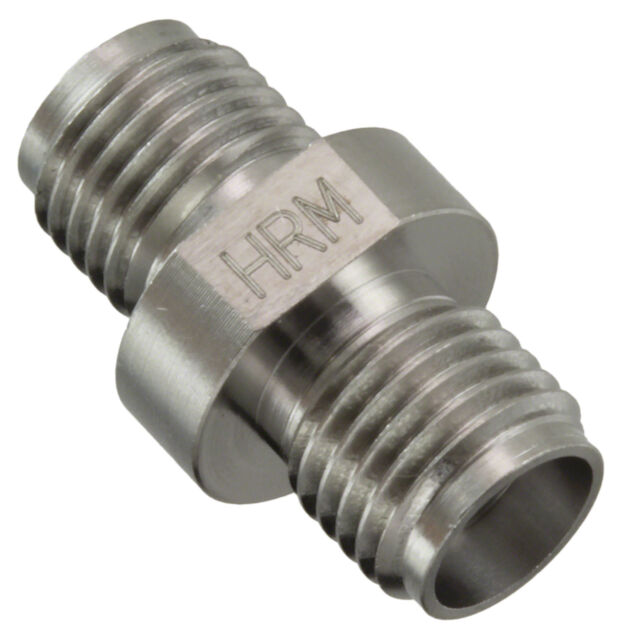

HRM-501S
ActiveHirose Electric USA, Inc.
CONN ADAPT JACK-JACK SMA 50OHM
Deep-Dive with AI
Search across all available documentation for this part.
HRM-501S
ActiveHirose Electric USA, Inc.
CONN ADAPT JACK-JACK SMA 50OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-501S |
|---|---|
| Adapter Series | SMA to SMA |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.23 | |
| 10 | $ 23.33 | |||
| 25 | $ 21.14 | |||
| 50 | $ 19.66 | |||
| 100 | $ 18.32 | |||
| 250 | $ 16.74 | |||
| 500 | $ 15.68 | |||
Description
General part information
HRM-501 Series
Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
