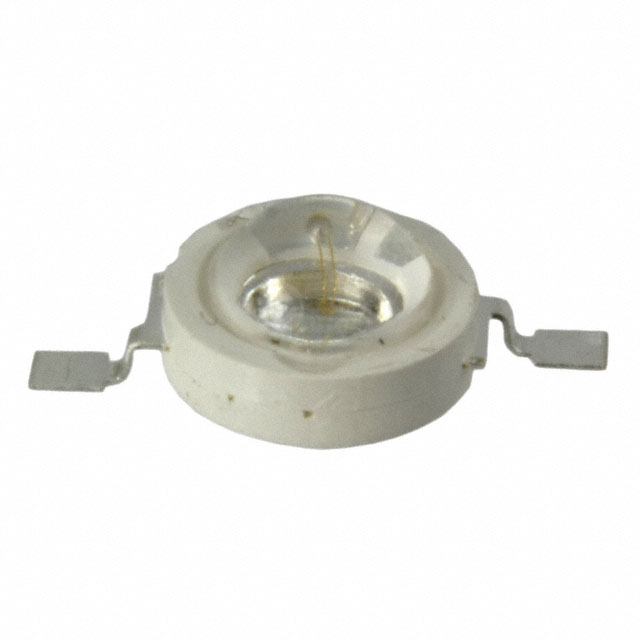

SML-LXL8047USBCTR3

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLU 454NM SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLU 454NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXL8047USBCTR3

Color	Blue
Current - Max [Max]	700 mA
Height - Seated (Max) [Max] [z]	4.7 mm
Height - Seated (Max) [Max] [z]	0.185 "
Lumens/Watt @ Current - Test	6 lm/W
Luminous Flux @ Current/Temperature	20 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing Exposed Pad
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Supplier Device Package	SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	4.6 V
Wavelength	454 nm

Part	Current - Max [Max]	Supplier Device Package	Wavelength	Voltage - Forward (Vf) (Typ)	Mounting Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Color	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Flux @ 25°C, Current - Test	CCT (K)	Current - Test
Lumex Opto/Components Inc. SML-LXL8047USBCTR3	700 mA	SMD	454 nm	4.6 V	Surface Mount	6 lm/W	20 lm	Blue	0.315 "	8 mm	2-SMD Gull Wing Exposed Pad	4.7 mm	0.185 "	100 °
Lumex Opto/Components Inc. SML-LXL8047UWCTR/3	1 A			4.6 V	Surface Mount	50 lm/W		Cool White	0.315 "	8 mm	2-SMD Gull Wing Exposed Pad	4.7 mm	0.185 "	100 °	160 lm	6000 K
Lumex Opto/Components Inc. SML-LXL8047UVC	700 mA	SMD	405 nm	3.6 V	Surface Mount	7 lm/W	18 lm	Purple Ultraviolet (UV)	0.315 "	8 mm	2-SMD Flat Leads	4.88 mm	0.192 in	100 °
Lumex Opto/Components Inc. SML-LXL8047MWCTR/3	1 A			4.6 V	Surface Mount	43 lm/W		Warm White	0.315 "	8 mm	2-SMD Gull Wing Exposed Pad	4.7 mm	0.185 "	100 °	140 lm
Lumex Opto/Components Inc. SML-LXL8047SYCTR/2	500 mA	SMD	598 nm	2.5 V	Surface Mount	44 lm/W	55 lm	Yellow	0.315 "	8 mm	2-SMD Gull Wing Exposed Pad	4.7 mm	0.185 "	100 °			500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color TitanBrite™ Blue 454nm (Typ) 2-SMD, Gull Wing Exposed Pad
