SPNW-18

Obsolete

Essentra Access Solutions

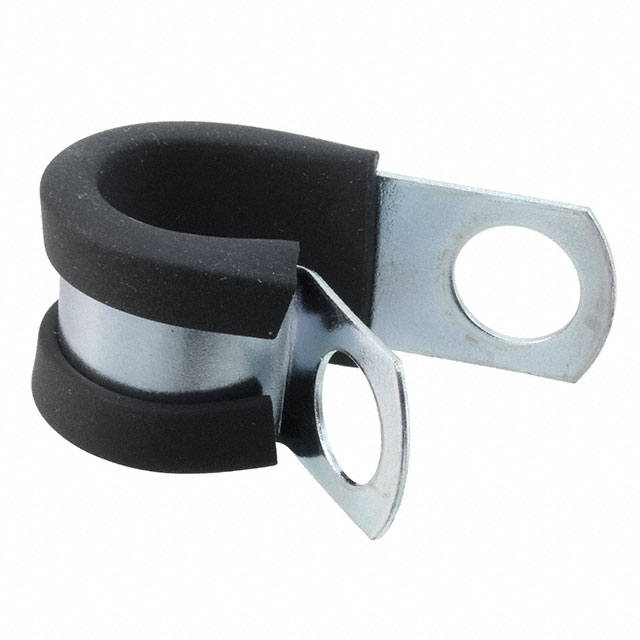

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPNW-18

Obsolete

Essentra Access Solutions

CBL CLAMP P-TYPE FASTENER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPNW-18

Bundle Center to Mounting Center	1.15 in
Bundle Center to Mounting Center	29.21 mm
Color	Black, Silver
Features	Neoprene Protective Coating
Material Thickness	0.031 in
Material Thickness	0.8 mm
Mounting Type	Fastener
Opening Size	28.58 mm
Opening Size [z]	1.125 in
Panel Hole Size	0.409 in
Panel Hole Size	10.39 mm
Screw Size	0.375 in
Screw Size	M10
Type	Clamp, P-Type
Type Attributes	Cushioned
Width [y]	0.75 in
Width [y]	19.05 mm

SPNW Series

Part	Material Thickness	Material Thickness	Opening Size [z]	Opening Size [z]	Color	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Screw Size	Screw Size	Features	Type Attributes	Panel Hole Size	Panel Hole Size	Mounting Type	Width [y]	Width [y]	Type	Opening Size	Opening Size [custom]	Opening Size [custom]	Bundle Center to Mounting Center [custom]	Opening Size [diameter]
Essentra Access Solutions SPNW-3	0.031 in	0.8 mm	4.78 mm	0.188 in	Black Silver	0.6 in	15.24 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type
Essentra Access Solutions SPNW-18	0.031 in	0.8 mm		1.125 in	Black Silver	1.15 in	29.21 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type	28.58 mm
Essentra Access Solutions SPNW-20	0.031 in	0.8 mm			Black Silver	1.21 in	30.73 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type		1.25 in	31.75 mm
Essentra Access Solutions SPNW-11	0.031 in	0.8 mm		0.688 in	Black Silver	0.91 in	23.11 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type	17.48 mm
Essentra Access Solutions SPNW-7	0.031 in	0.8 mm			Black Silver	0.72 "	18.29 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type		0.438 in	11.13 mm
Essentra Access Solutions SPNW-4	0.031 in	0.8 mm			Black Silver		16 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type	6.35 mm			0.63 in	0.25 in
Essentra Access Solutions SPNW-14	0.031 in	0.8 mm	22.22 mm	0.875 in	Black Silver	1 "	25.4 mm	0.375 in	M10	Neoprene Protective Coating	Cushioned	0.409 in	10.39 mm	Fastener	0.75 in	19.05 mm	Clamp P-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SPNW Series

Cable Clamp, P-Type Black, Silver Fastener 1.125" (28.58mm)
