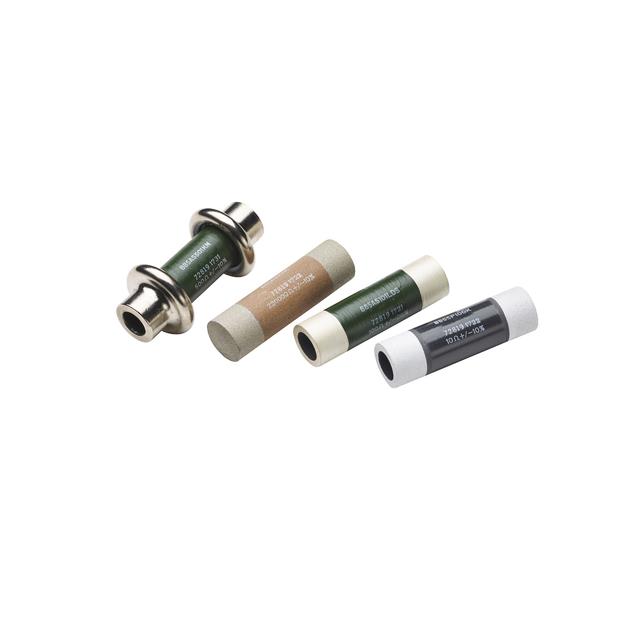

1038AS750KDS

Active

Ohmite

RES CHAS MNT 75 OHM 10% 225W

Search across all available documentation for this part.

Active

Ohmite

RES CHAS MNT 75 OHM 10% 225W

Technical Specifications

Parameters and characteristics for this part

Specification	1038AS750KDS

Coating, Housing Type	Ceramic
Composition	Ceramic
Features	Non-Inductive, High Voltage, Pulse Withstanding
Lead Style	Ferrule Ends
Mounting Feature	Brackets (not included)
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Tubular
Power (Watts)	225 W
Resistance	75 Ohms
Size / Dimension	38.1 mm, 457.2 mm
Size / Dimension [custom]	18 in
Size / Dimension [diameter]	1.5 in
Temperature Coefficient	-800 ppm/°C, 0 ppm/°C
Tolerance	10 %

Part	Power (Watts)	Composition	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Coating, Housing Type	Package / Case	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [custom]	Mounting Feature	Features	Lead Style	Resistance
Ohmite 1038AS750KDS	225 W	Ceramic	10 %	230 °C	-55 °C	-800 ppm/°C 0 ppm/°C	Ceramic	Axial Tubular	38.1 mm 457.2 mm	1.5 in	18 in	Brackets (not included)	High Voltage Non-Inductive Pulse Withstanding	Ferrule Ends	75 Ohms
Ohmite 1038AS201KDS	225 W	Ceramic	10 %	230 °C	-55 °C	-800 ppm/°C 0 ppm/°C	Ceramic	Axial Tubular	38.1 mm 457.2 mm	1.5 in	18 in	Brackets (not included)	High Voltage Non-Inductive Pulse Withstanding	Ferrule Ends	200 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

75 Ohms ±10% 225W Ceramic Chassis Mount Resistor

Technical documentation and resources

No documents available
