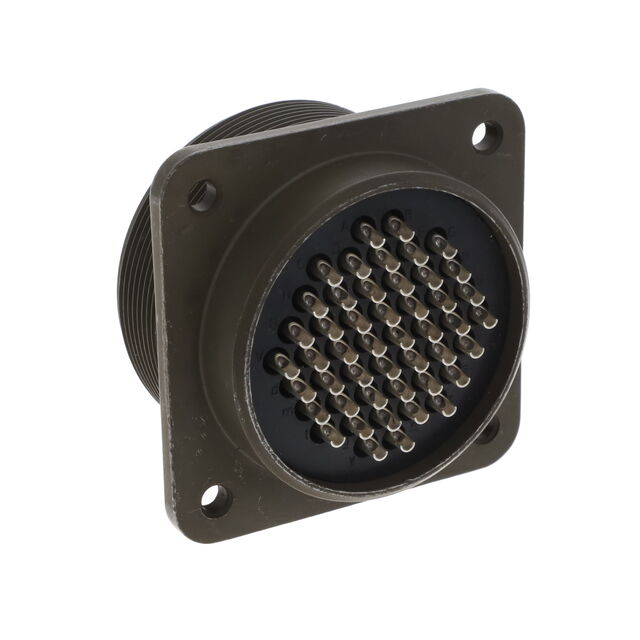

MS3102E36-10S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 48P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3102E36-10S
ActiveAmphenol Industrial Operations
CONN RCPT FMALE 48P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3102E36-10S |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 2.062 in |
| Cable Opening [custom] | 52.37 mm |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 36-10 |
| Shielding | Unshielded |
MS3102E36 Series
| Part | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Contact Finish - Mating | Orientation | Mounting Feature | Ingress Protection | Connector Type | Insert Material | Primary Material | Shell Finish | Cable Opening [custom] | Cable Opening [custom] | Color | Applications | Number of Positions | Contact Material | Qualification | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | 36-10 | -55 °C | 125 °C | Aluminum Alloy | Silver | N | Flange | Environment Resistant | Receptacle Female Sockets | Neoprene | Metal | Olive Drab Chromate over Cadmium | 2.062 in | 52.37 mm | Olive Drab | Marine Military | 48 | Copper Alloy | MIL-5015 | Unshielded |
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||
Amphenol Industrial Operations |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 75.10 | |
| 10 | $ 68.92 | |||
| 25 | $ 66.27 | |||
| 50 | $ 64.06 | |||
| 100 | $ 60.52 | |||
Description
General part information
MS3102E36 Series
48 Position Circular Connector Receptacle, Female Sockets Solder Cup
